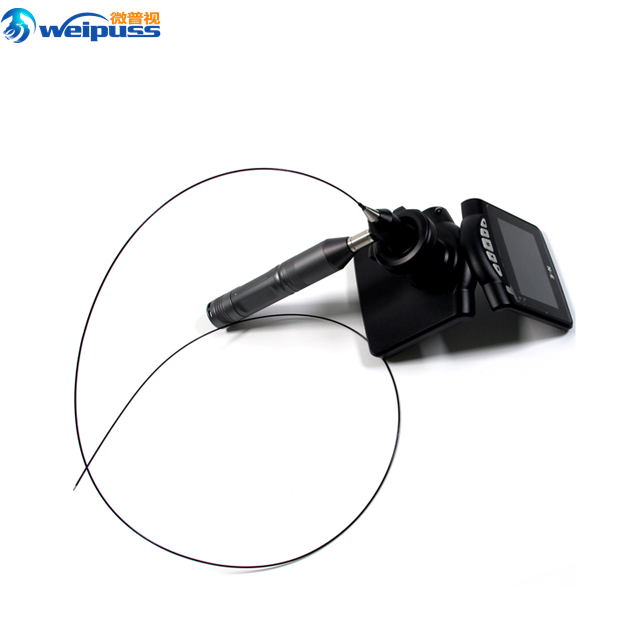

FD10 Ultra-Fine Optica Endoscope

This is a flexible fiber optical endoscope adopting direct optical eyepiece observation design. With an ultra-fine pipe diameter of only 0.78mm, it features built-in fiber light guide inside rigid tube. It can connect external image sensors, cameras and displays, supporting photo shooting and video recording. Equipped with integrated portable adjustable brightness light source, it is ideal for narrow hole and tiny component inspection work.

• Ultra-thin Bendable Probe Deep into Tiny Spaces

  0.78mm slender probe as thin as hair smoothly enters lock holes, pinholes, narrow equipment gaps and micro pipelines for dead-angle-free detection. Flexible bendable tube travels through complex curved micro cavities stably.

• Replaceable Probe Multi-function & Cost Saving

  Compatible with interchangeable probes ranging 0.78-2.4mm in diameter and 600-2000mm in length. Satisfy lock hole evidence collection, pipeline detection and equipment maintenance. External rigid lens expands application scope, cutting procurement and maintenance cost effectively.

• 3.5-inch Integrated Imaging Easy Operation

  Built-in 3.5-inch display and high-bright LED cold light source, no extra accessories required. Real-time observation, snapshot and video recording finish on site efficiently. Cold light causes no thermal damage to tested objects with clear and detailed images.

• Wear-resistant Durable Structure for Harsh Industrial Environment

  Probe shell made of high wear-resistant titanium alloy, corrosion-proof and long service life. Stable whole structure and premium imaging components guarantee stable performance and qualified professional detection effect.

• Superior Optical Performance Precise Clear Imaging

  90° wide viewing angle, depth of field from 3mm to 50mm, multiple pixel specifications optional. Clearly capture tiny flaws and internal structures to meet high-precision detection demands. Direct viewing helps fast fault inspection and improves working efficiency.

• Security Lock Hole Investigation & Anti-theft Inspection

  Applied in criminal investigation and security patrol, inspect internal structure of door locks, safe locks and car locks. Observe lock cylinder and card slot, check prying traces and anti-theft status to provide valid video evidence.

• Precision Instrument & Micro Cavity Maintenance

  Maintain miniature electronic devices, aerospace parts and micro sensors. Detect welding spots, micro cracks and foreign matters without disassembling equipment to avoid secondary damage.

• Industrial Micro Pipeline Inspection

  Suitable for chemical, pharmaceutical and mechanical industry micro pipes, nozzles and mold cavities. Long-distance probe detects blockage, corrosion and dirt to ensure safe equipment operation.

• Cultural Relic & Ancient Building Detection

  Non-destructive detection for tenon joints and narrow gaps of cultural relics and ancient architectures. Inspect decay, worm damage and cracks without damaging original structure.

• Vehicle Maintenance & Parts Testing

  Detect internal defects of auto components, fast locate hidden faults and reduce maintenance difficulty.

• Install matched probe onto the main unit, turn on the display and adjust cold light brightness.

• Insert ultra-thin probe into testing area, adjust angle to obtain clear view.

• Take photos or record videos, replay and save inspection data.

• Retract probe slowly, clean lens, power off and store equipment properly.
