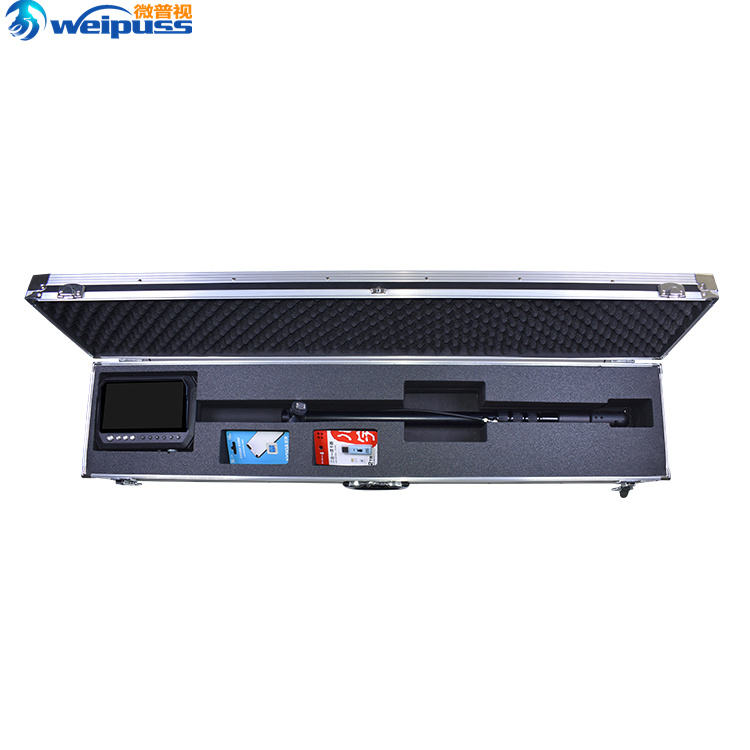

VD50 Extensible Video Inspection Endoscope

The VD50 series Video Audio Life Detector, 360-degree rotation, high-definition infrared and white lightoptional, one-way sound pickup, two-way intercom function, the probe can be plugged and unplugged toreplace probes of different specifications, 7-inch display screen, the screen Angle can be rotated 180degrees, applied to search and rescue Security inspection, customs inspection, counter-terrorisminvestigation, etc

1. Electric all-directional rotation, no blind spots detection

Equipped with an electric drive pan-tilt, it supports 360° horizontal and 300° vertical wide-range rotation. It can be adjusted to the shooting angle with one click, completely covering the blind spots such as ceilings, vehicle bottoms, and equipment gaps, without the need for manual bending of the pole body. The operation is more efficient.

The screen supports up and down rotation adjustment of no less than 180°, suitable for different working postures, and provides a more comfortable observation experience.

2. Ultra-high-definition low-light imaging, suitable for all scenarios

Using a 1/3" CCD high-definition probe + DSP image processing, with 800TVL horizontal clarity and 0.01Lux ultra-low light, combined with optional LED white/red light supplementary lighting, it can still output clear images in dark and low-light environments, suitable for night, underground, and other lightless scenarios.

1920*1080 full HD shooting / recording, precise detail capture, meeting the high-definition requirements for evidence collection and maintenance.

3. Customizable telescopic design, flexible adaptation to multiple scenarios

The telescopic pole is made of aluminum alloy / carbon fiber, with a minimum length of 0.9m and a maximum length of 3-5m (optional). Customizable length can be set within the range, allowing for close-range detailed inspection or long-distance safe detection, suitable for various scenarios such as high places, vehicle bottoms, and pipelines.

Lightweight design, no fatigue during long-term operation, with full portability.

4. 7/8-inch high-definition large screen, intelligent control experience

Equipped with a 7"/8" high-definition LCD display, with a brightness of 350cd/m², it can clearly view the real-time picture even in strong light, supporting multiple functions such as taking photos, recording, zooming in/out, negative film, WiFi connection, etc., completing on-site evidence collection and data export in one step.

Supports multiple formats of output such as AV, USB 2.0, HDMI, and can be connected to external displays and storage devices to meet different operation needs.

5. Long battery life + high durability, stable and reliable

Built-in a 12000mAh large-capacity rechargeable lithium battery, supporting DC12V output, capable of long-term continuous operation, suitable for outdoor, security inspection, and other long-duration tasks.

The overall structure is sturdy, with a working humidity range of 10%-85%, suitable for various complex operation environments, and has a long service life.

1. Cargo security / Customs inspection

This method is applicable for inspecting concealed areas such as the top, bottom, and compartments of containers, trucks, and freight vehicles. The 3-5-meter telescopic pole can easily cover the entire range of the vehicle body, and the electric 360° rotating probe can conduct unobstructed inspections for prohibited items and hidden individuals, with a low illumination of 0.01Lux suitable for night inspections, significantly improving the inspection efficiency.

2. Building quality / Municipal engineering inspection

This method is used for non-destructive inspections of building ceilings, interior of ceilings, high-altitude pipelines, wall compartments, and municipal elevated structures. No need for climbing operations, the telescopic pole can extend to the high-altitude areas, and high-definition imaging can accurately detect structural defects and pipeline failures, avoiding risks of high-altitude operations and improving the efficiency of project acceptance.

3. Fire protection / Emergency rescue inspection

This method is suitable for fire protection and fire hazard inspection scenarios, capable of penetrating into fire scenes, narrow spaces, high-altitude chimneys, and pipeline interiors. In environments with thick smoke and darkness, infrared / low-light imaging can clearly identify trapped individuals and fire hazard sources, providing real-time visual evidence for rescue decisions.

4. Industrial equipment / Pipeline system inspection

This method is used for maintenance of industrial equipment, machinery interiors, pipelines, boilers, and pressure vessels. The telescopic pole can penetrate into the equipment interior, and the electric rotating probe can conduct all-round inspections for wear, corrosion, and foreign object blockages, without the need to disassemble the equipment, achieving non-destructive testing and ensuring industrial production safety.

5. Aviation / Rail transit security inspection

This method is applicable for safety inspections of aircraft fuselages, top of aircraft cabins, bottom of train / subway carriages, and roof areas. Customized telescopic poles can be adapted to different heights, and high-definition imaging can accurately detect foreign objects and structural hazards, ensuring the safety of aviation and rail transit operations.

Power-on Preparation: Select the appropriate length of the telescopic rod according to the working environment. After powering on, complete the white balance calibration. Switch between the white light / infrared dual light sources as needed. Rotate the screen 180 degrees to a comfortable observation angle and wear the intercom headset.

Precise Detection: Control the probe to achieve 360° horizontal and 300° vertical omnidirectional rotation. Slowly enter the gaps and concealed spaces of the ruins. Observe the scene in real time through the 7-inch high-definition screen. Use one-way audio pickup to capture on-site sounds.

Interaction and Recording: After discovering the target, trigger two-way communication with the trapped person with one click; simultaneously activate the photo / video recording function to preserve high-definition video materials. Support picture freezing, zooming, and precise recording of details.

Expansion and Storage: Can be displayed synchronously on a large screen via WiFi/HDMI connection. After the operation is completed, clean the probe and telescopic rod, avoid bending the pipelines when storing, and properly store the device after turning off the power. Regularly check the equipment status.
