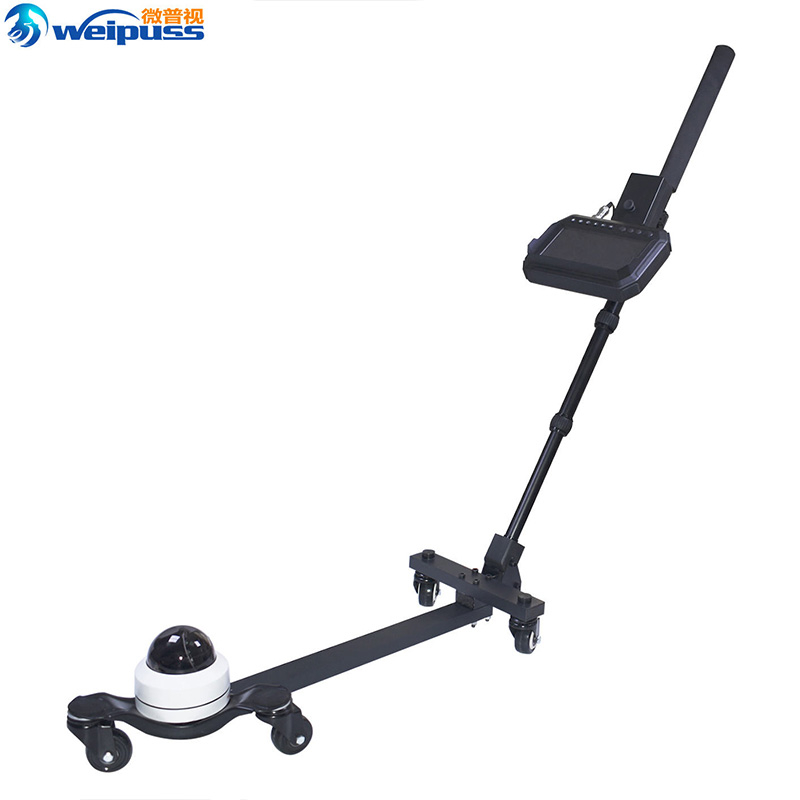

VD20 Undercarriage Inspection Endoscope

The VD20 series under vehicle inspection system, 360-degree rotation, high-definition infrared and white light optional, This 1080P full HD digital portable telescopic pole camera under vehicle inspection system is for vehicle bottom security surveillance. clear digital video images of the entire width of a vehicle’s undersides portable system

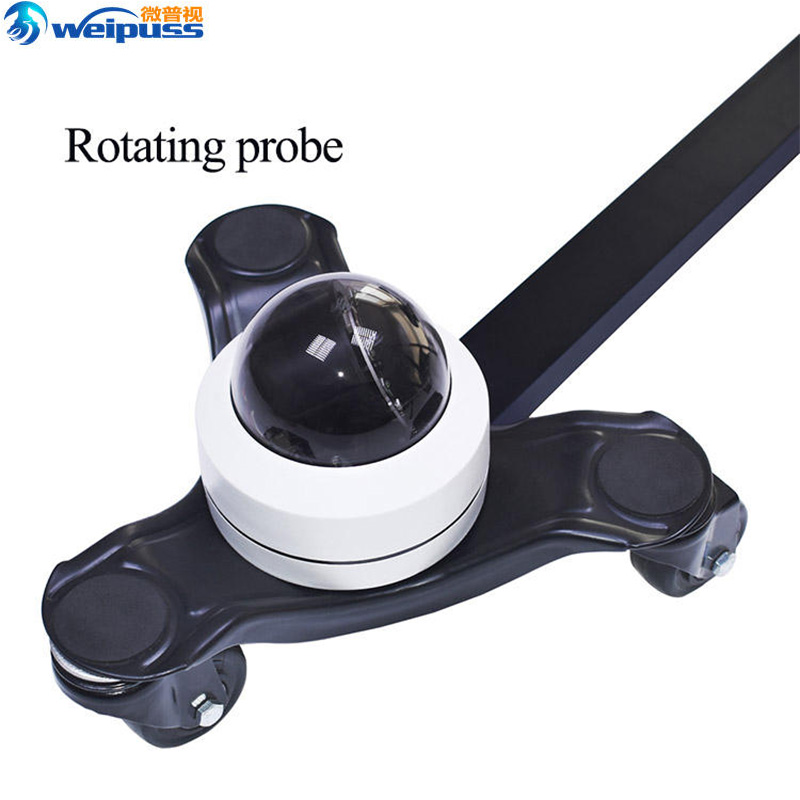

1. Electrically controlled pan-tilt 355° all-round non-stop detection

Equipped with an electrically controlled rotating pan-tilt, it supports a wide range of 355° horizontal and 93° vertical rotation. The shooting angle can be precisely adjusted through the joystick, and the automatic flipping function is suitable for complex vehicle bottom perspectives, with no detection blind spots.

The rotation speed can be adjusted (horizontal ≥ 0 - 30°/S, vertical ≥ 0 - 20°/S), allowing for quick scanning of the vehicle bottom, as well as precise point-by-point investigation. The operation is flexible and efficient.

2. Ultra-high-definition imaging + 15-meter infrared night vision, suitable for all scenarios

Using a 1/2.8" CMOS lens, 10 million + pixels, 1080P high-definition recording, combined with a 112° horizontal / 80° vertical wide-angle, the details of the vehicle bottom can be clearly captured.

Multiple high-power infrared floodlights, 0.001 LUX ultra-low illumination, infrared detection distance up to 15 meters, still clear imaging in night / low-light environments, suitable for all-weather security inspection needs.

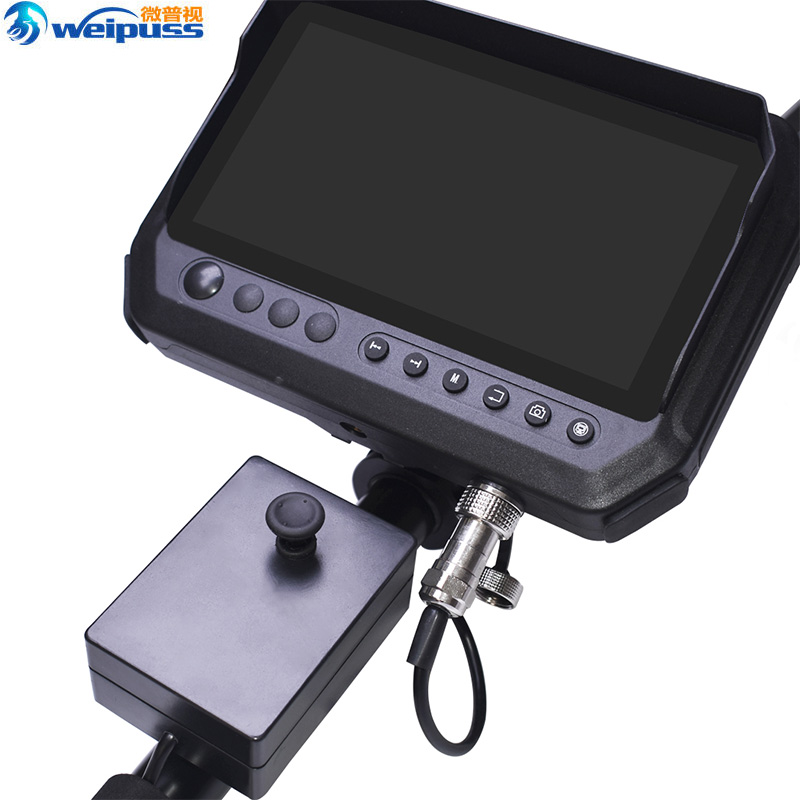

3. 7-inch high-definition large screen, more convenient visual operation

Equipped with a 7.0-inch 1920*1080 full HD color display, 450 CD/m² high brightness, clear real-time images even in strong light.

Supports one-click photo / video shooting, image / video playback, intuitive operation, no additional equipment required for on-site security inspection, quick evidence collection and archiving.

4. Long battery life + large storage capacity, meeting long-term operation requirements

Built-in 12000mAh large-capacity lithium battery, supporting long-term continuous operation, no frequent charging required, suitable for frequent security inspection scenarios such as ports and checkpoints.

Standard 16G TF memory card, upgradable to 128G maximum, can store a large amount of security inspection videos / photos, meeting the data retention requirements for long-term investigation.

5. High adaptability design, suitable for complex working environments

Operating temperature range: -15℃~65℃, 90% RH frost-free, can work stably in extreme environments such as cold, hot, and humid conditions, suitable for outdoor, port, and other scenarios.

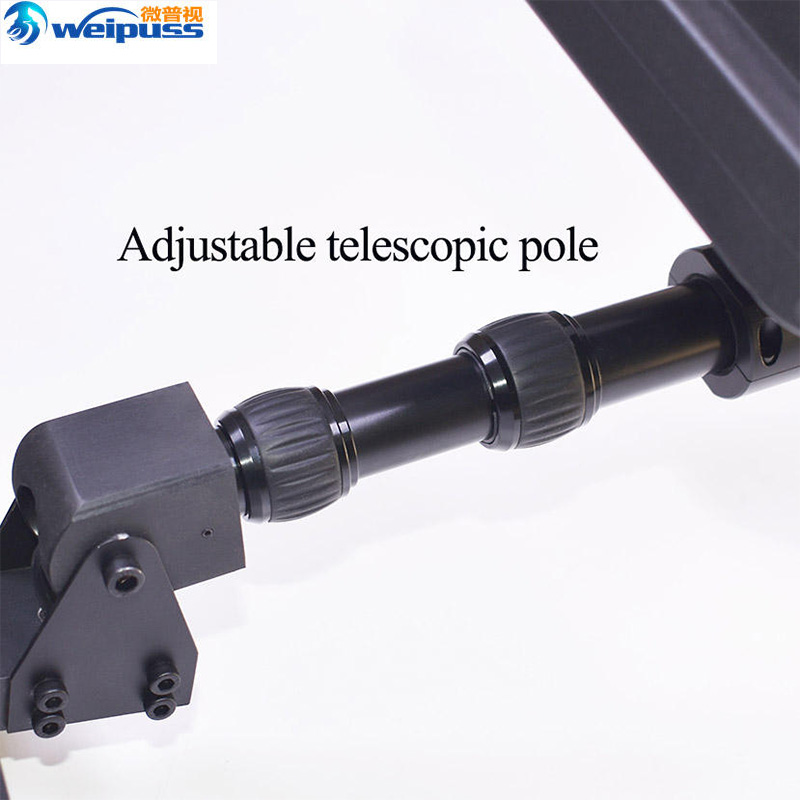

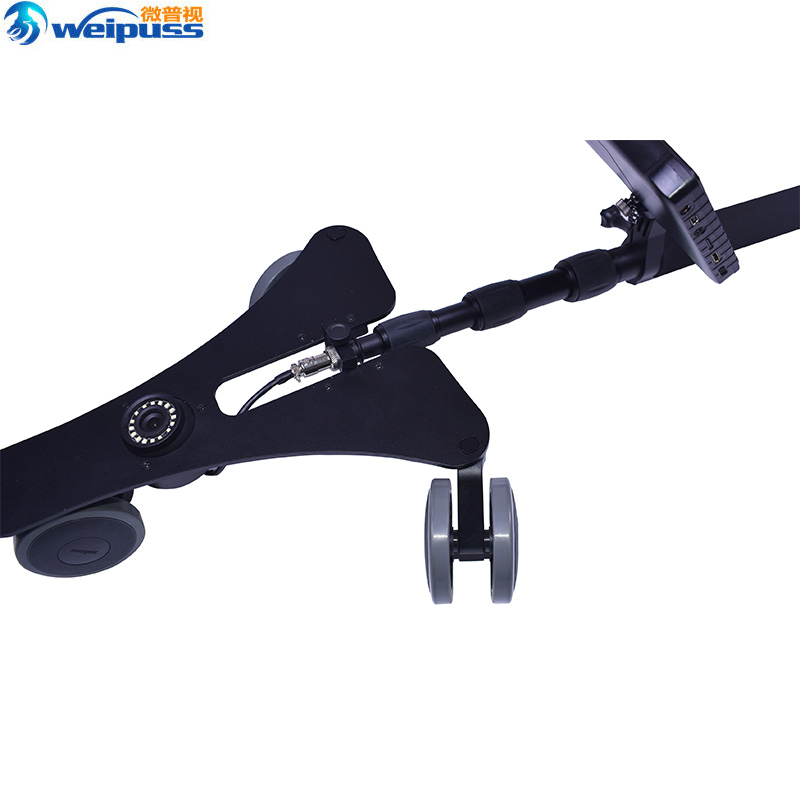

Roller-type vehicle bottom probe design, can be easily pushed into the vehicle bottom, telescopic rod can be flexibly adjusted, no need for personnel to bend over, significantly improving security inspection efficiency and safety.

I. Vehicle Safety Inspection Scenarios

Vehicle Entrance and Exit Inspection: At airports, customs, government agencies, confidential units, large event/exhibition venues, prisons, and other places with vehicle entrances and exits, it is used to quickly inspect the vehicle chassis, undercarriage gaps, and inner sides of wheels, etc., to detect prohibited items, explosives, hidden persons, and illegally modified components, etc. It is the core equipment for vehicle inspection, which can replace the traditional method of manually crawling under the vehicle, improving inspection efficiency and safety.

Parking Lot / Garage Safety Inspection: In large shopping malls, office buildings, and underground garages of residential areas, it is used to inspect the vehicle chassis for any left-behind items, illegally installed tracking devices / eavesdropping equipment, etc., to ensure vehicle and facility safety. It can also be used for daily security patrols in parking lots to check for any abnormal conditions of vehicles.

Traffic Enforcement / Road Administration Inspection: In road law enforcement by traffic police and road administration departments, it is used to inspect the vehicle chassis for illegal modifications, overloading risks, and illegally added components, or to check for hidden prohibited items or smuggled goods, achieving rapid and contactless inspection.

II. Multi-Scenario Extended Inspection Scenarios

High-altitude / High-Position Concealed Area Inspection: It can be switched to a high-altitude search mirror form to inspect areas that are difficult for humans to reach, such as the ceilings of buildings, the interiors of suspended ceilings, high-pitched pipes, the tops of large equipment, and high shelves, to detect safety hazards, foreign objects, and wiring faults, etc. It is suitable for property maintenance, factory equipment inspection, and fire safety inspection scenarios.

Narrow / Low Space Inspection: It can be used to inspect narrow spaces such as under vehicle chassis, the bottoms of equipment, underground pipes, low cabinets, and the undersides of furniture, without the need for manual bending or climbing. The 7-inch display screen allows for a clear view of the internal conditions, suitable for vehicle maintenance in auto repair shops, factory equipment maintenance, and property facility inspection scenarios.

Total Darkness / Low Light Environment Inspection: Equipped with 12 high-brightness lighting sources (infrared fill lights), it can clearly image in total darkness (such as underground garages, outdoor at night, and enclosed pipes), suitable for night vehicle inspection, dark area inspection, and inspection of narrow spaces without lighting equipment.

Outdoor / Complex Environment Inspection: The display screen has a built-in shading design, supporting operation in strong outdoor light, with a waterproof rating of IP55, allowing use in rainy, dusty, and outdoor road conditions, suitable for outdoor temporary inspection points, road law enforcement, and outdoor facility inspection scenarios.

Prep: Check battery (12000mAh) & TF card, extend the pole, place the camera on the ground.

Inspect: Power on, push the camera under the vehicle. Use the joystick to control the 355° pan/93° tilt camera for full coverage.

Record: One-key to take photos/record 1080P videos, review on the 7-inch 1080P screen.

Finish: Retract the pole, power off, clean the lens, and store properly.

Export: Transfer data via USB for archiving.
