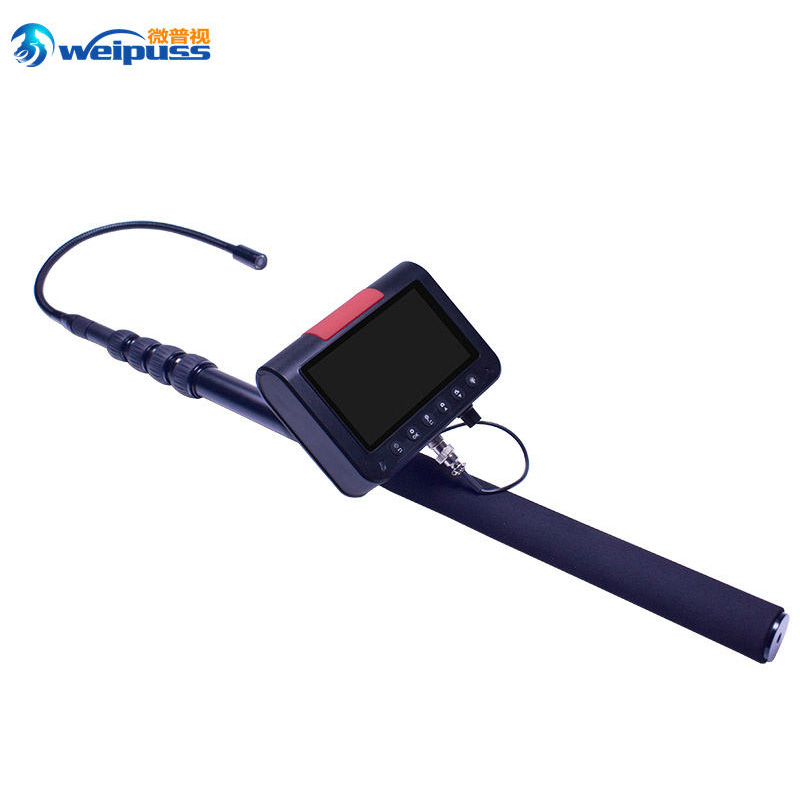

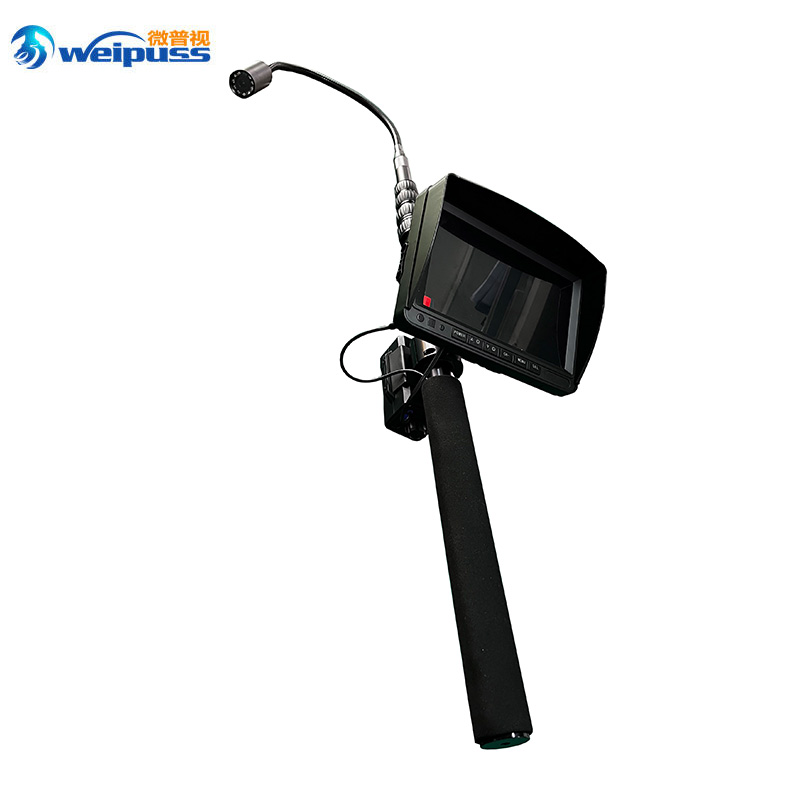

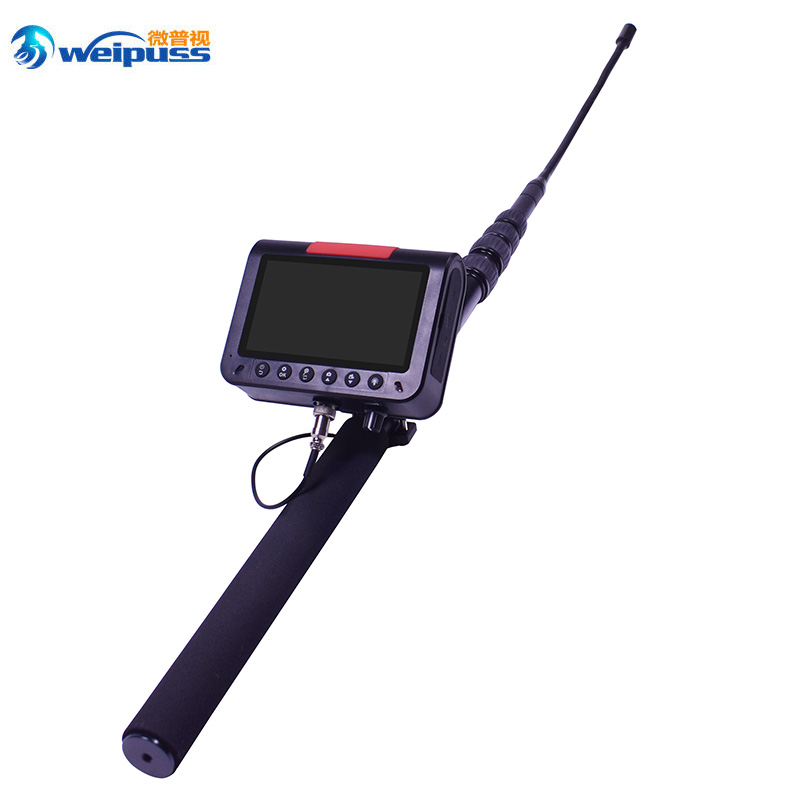

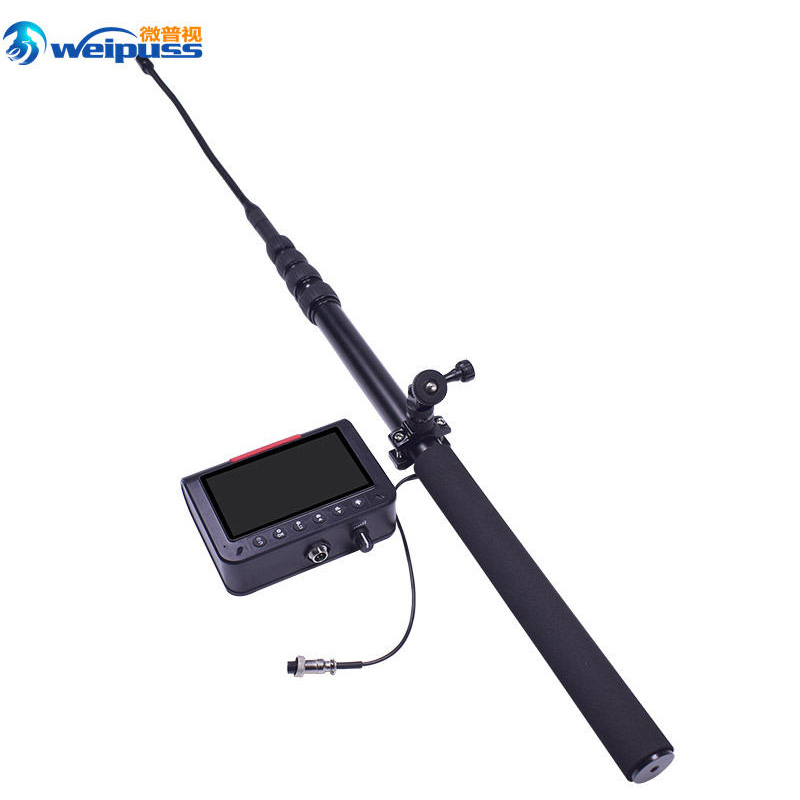

The VD30 series wall ceiling Roof inspection system,high-definition infrared and white light optional,clear digital video images .This 1080P full HD digital portable telescopic pole camera Ceiling inspection system is for security surveillance.
This device is specifically designed for search and rescue in hazardous environments and inspection of concealed spaces. Its core advantages lie in four key aspects: flexible detection, high-definition imaging, long battery life, and strong adaptability.

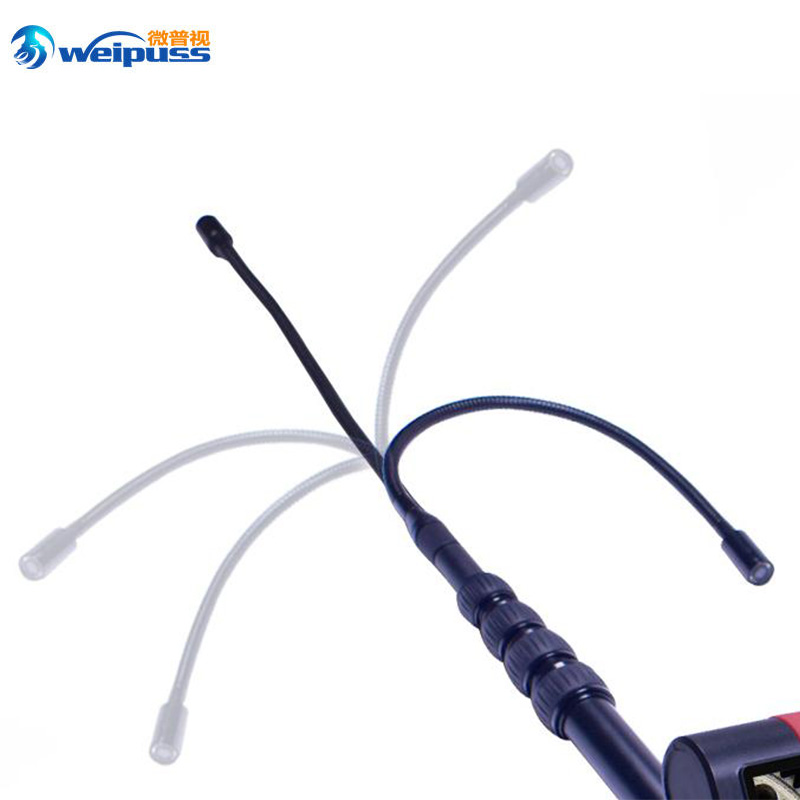

1. Ultra-flexible 360° arbitrary bending detection structure
Equipped with an adjustable camera pole that can be bent freely in any direction, supporting 360° spatial bending, it can easily adapt to complex, narrow, irregular and concealed spaces such as ceilings, car chassis, collapsed ruins, etc., without any detection blind spots.

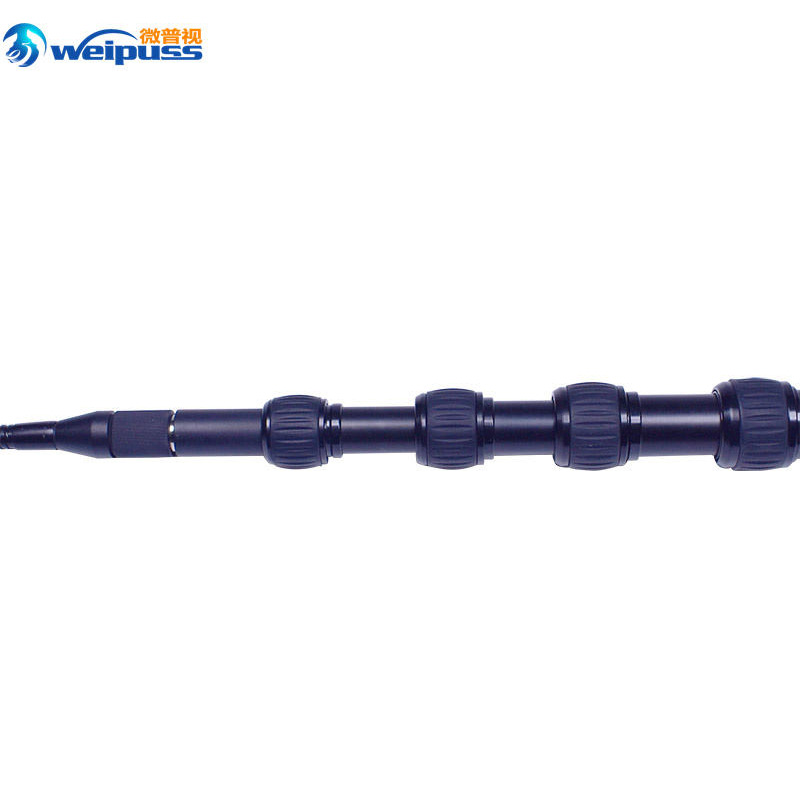

The telescopic length can be fixed at any position within the range of 1.1m (minimum contraction) to 2.5m (maximum extension), allowing for both close-range detailed inspection and long-distance safe detection, meeting the operational requirements of different scenarios.
2. High-definition infrared imaging, full-scene low-light compatibility
Using a 1/3-inch color infrared camera with 2 million pixels and 700-line resolution, combined with a 0.5mm F1.2 90° wide-angle lens, the image is clear and the field of view is wide, with full detail capture capabilities.
It comes with an infrared illuminator, with a minimum illumination of only 0.2Lux. In weak light / no light environments such as earthquake ruins, dark carriages, and unlit ceilings, it can still output clear images and achieve all-weather operations.
3. Integrated visual operation, efficient recording and storage
Equipped with a 5-inch high-definition display, supporting real-time display of the picture, and paired with button switch operation, it is easy to use and responds quickly, eliminating the need for additional equipment during on-site operations.
Integrated with functions such as taking photos, recording, and storage, using H.264 high compression ratio encoding, with a standard 16G storage (upgradable to 64G), supporting USB 2.0 wired signal transmission, capable of real-time image transmission and data export, meeting the needs of evidence collection and review.
4. Long battery life and portable design, suitable for outdoor emergency scenarios
Equipped with a 5000mAh rechargeable lithium battery, 12DCV power supply, capable of continuous operation for 4 hours, meeting the power requirements for long-term outdoor search and rescue, on-site inspection, and eliminating the need for frequent charging.
Lightweight telescopic rod design, contracted to only 1.1m, portable and easy to carry, suitable for emergency scenarios such as fire fighting, rescue, and security inspection that require rapid deployment.
5. Multi-scenario high compatibility, one camera for multiple uses
Covering earthquake search and rescue, collapsed building inspection, ceiling / ceiling inspection, car chassis concealed area detection, mine rescue, etc., it is a versatile tool for emergency rescue and safety inspection.
Infrared + visible light dual-mode imaging, capable of searching in dark environments and conducting detailed inspections in normal environments, adapting to the needs of different operation scenarios.
This device features a telescopic design, 360° curvature, infrared night vision, and real-time visualization, making it perfectly suitable for various scenarios such as concealed space inspections, dangerous environment search and rescue, and safety checks. The core application directions are as follows:
1. Emergency search and rescue in earthquakes / collapsed buildings
Applicable scenarios: Disaster sites such as earthquakes, building collapses, and landslides, as well as life detection in crevices, collapsed wall layers, and narrow enclosed spaces.
Application value: A telescopic rod with a 2.5-meter extension and 360° flexibility can reach deep into the ruins, combined with infrared low-light imaging, enabling clear identification of trapped individuals in dark ruins and avoiding blind entry into secondary collapse areas, significantly improving search efficiency and safety.
2. Inspection of ceilings / ceilings / high-altitude concealed spaces
Applicable scenarios: In building maintenance, fire inspection, and property maintenance, such as internal ceilings, ceiling layers, high-altitude pipeline shafts, and ventilation ducts that are inaccessible to people.
Application value: The telescopic rod can extend to 2.5 meters, eliminating the need for climbing, and enabling visual inspections of pipelines, fire-fighting facilities, structural hazards, pest infestations / debris accumulation in high-altitude concealed areas, avoiding risks of falling from heights, and improving inspection efficiency.
3. Inspection of vehicle / large equipment chassis concealed areas
Applicable scenarios: Security checks and bomb disposal, customs inspection, vehicle security checks, inspection of the chassis of large construction machinery / trucks, and inspection of chassis faults during vehicle maintenance.
Application value: It can reach areas that are difficult for people to inspect from a low position, such as under the vehicle, at the bottom of containers, in equipment gaps, etc., quickly checking for prohibited items, hidden individuals, structural hazards, without lifting the vehicle, significantly improving security check efficiency, and being applicable to ports, inspection stations, and auto repair shops, etc.
4. Mine / underground rescue and safety checks
Applicable scenarios: Mine collapses, underground accident rescue, daily safety inspections of mines, such as behind the tunnel walls, collapse areas, enclosed spaces, equipment gaps, etc., for hazard checks and life detection.
Application value: Long telescopic rod can reach complex structures in underground mines, infrared imaging is suitable for low-light environments underground, and real-time images can help rescue personnel locate trapped miners, while also detecting safety hazards such as gas and structural collapses, ensuring safety in mine operations and rescue.
5. Fire / anti-terrorism / security bomb disposal scenarios
Applicable scenarios: Inspection of building crevices, wall layers, vehicle trunks, inside luggage / packages, and areas around suspicious explosives in fire rescue, anti-terrorism security checks, and bomb disposal operations.
Application value: Non-contact visual inspection to avoid direct contact with dangerous items, 360° no-corner imaging can accurately identify suspicious items, hidden individuals, and provide intuitive basis for bomb disposal and security checks, ensuring the safety of operators.
Prep: Power on, check battery, assemble the camera pole.
Inspect: Extend/lock the pole (1.1m-2.5m), bend the 360° camera to reach blind spots.
Operate: View real-time footage on the 5-inch screen, use IR for low light, take photos/videos.
Finish: Retract the pole, power off, clean the lens, and store properly.
Export: Transfer data via USB 2.0 for review.
