FD10 Punch-hole Endoscope

Flexible Fiber Optical Endoscope，ultra-fine diameter 0.78mm, Observation mode Optical eyepiece for direct observation

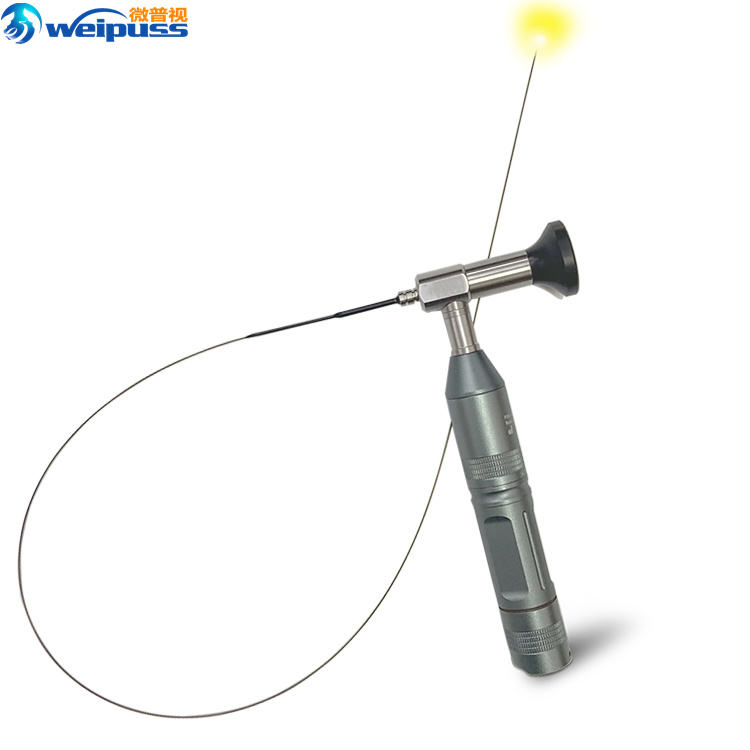

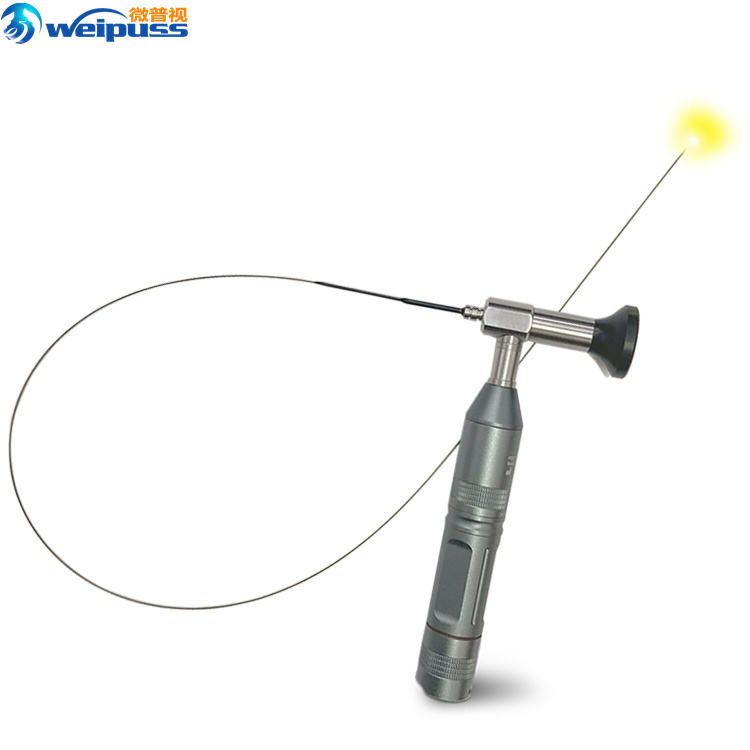

Illumination :working Hard tube Internal optical fiber light guide lighting, CCD can be connected Camera and display, realize the function of taking pictures and videos, portable integrated light source, adjustable brightness. It is used for observing keyholes, small parts, etc

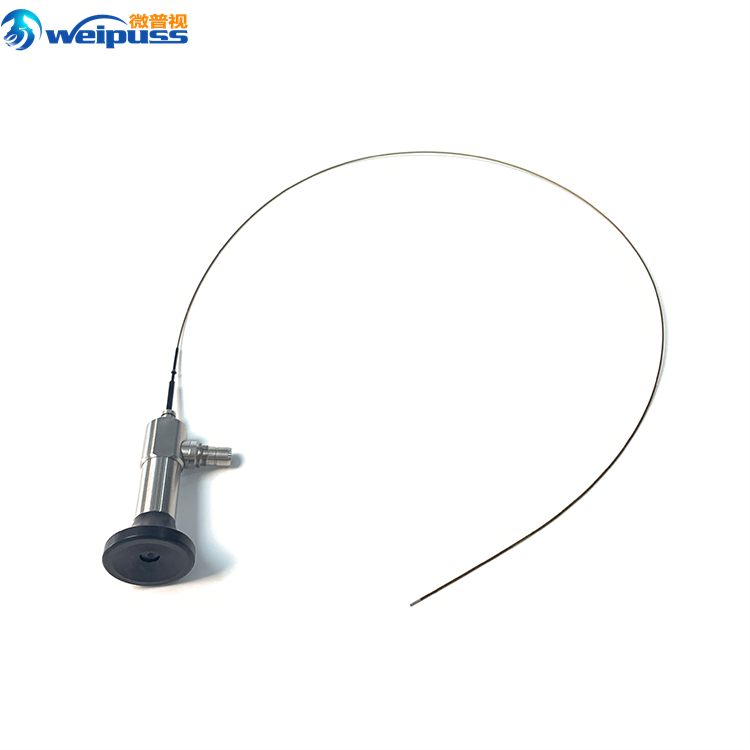

1. The 0.78mm ultra-fine insertion tube breaks through the limitation of narrow spaces.

The industry-leading 0.78mm flexible insertion tube has a diameter as fine as a hair, enabling it to easily penetrate lock eyes, pinholes, narrow openings of equipment, capillaries, and other areas that conventional endoscopes cannot reach, achieving true "no blind spot" inspection.

The insertion tube is soft and flexible,allowing it to smoothly pass through narrow spaces and is suitable for various complex and tortuous small cavity detection needs.

2. Reusable probe design,one machine for multiple uses,cost reduction and efficiency improvement.

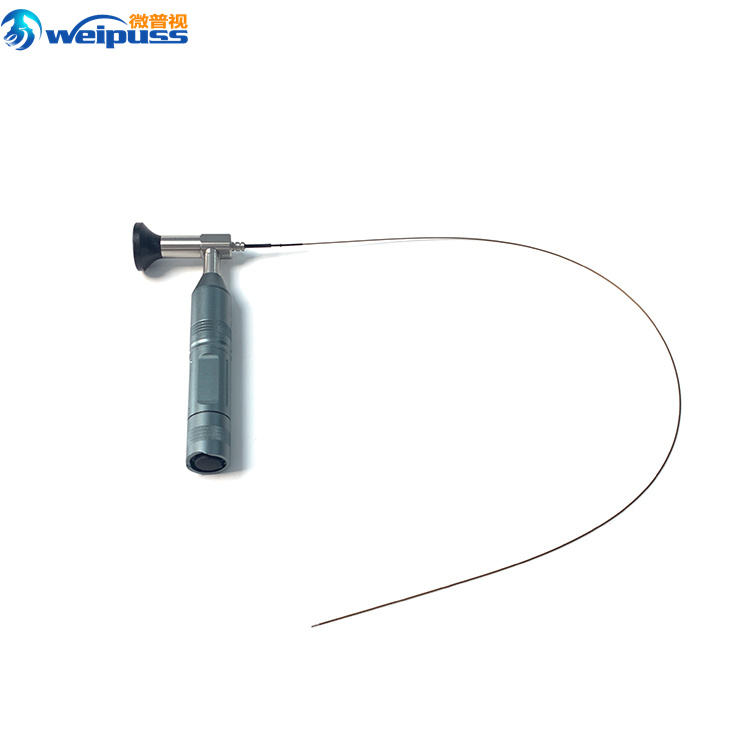

Support for replaceable insertion probes, which can be flexibly matched with probes of different diameters (0.78 - 2.4mm) and different lengths (600 - 2000mm), suitable for various scenarios such as lock eye evidence collection， capillary detection,and equipment internal maintenance,covering multiple detection tasks with one device.

Compatible with external hard tube lenses, further expanding the usage scenarios and significantly reducing procurement and maintenance costs.

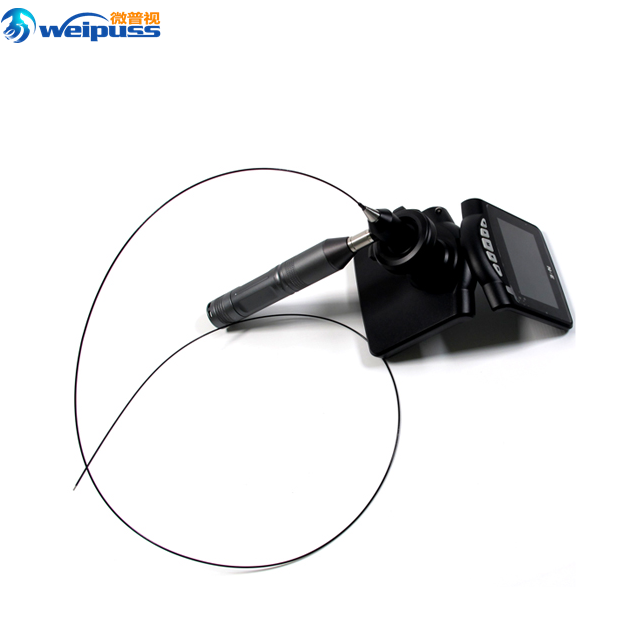

3. 3.5-inch integrated imaging system, convenient operation.

Equipped with a 3.5-inch integrated display,integrated handheld high-brightness LED cold light source, no need for external equipment, real-time observation,photography,and video recording can be completed on-site,efficient and convenient for evidence collection.

The cold light source illumination has no heat radiation,avoiding damage to the inspected object, while ensuring a clear and bright picture with high detail reproduction.

4. High wear resistance and durability design,suitable for industrial harsh environments.

The camera housing is made of high-wear-resistant titanium alloy material,sturdy and durable,capable of long-term use in complex scenarios such as industrial detection and lock eye evidence collection, resistant to wear and corrosion,with a long service life.

The overall structure is firm and durable,combined with high-quality image system, balancing imaging quality and structural reliability to meet professional detection requirements.

5. Excellent optical performance,precise imaging.

90° large field of view angle,3mm - 50mm depth of field range,with 1W/3W/16W multiple effective pixels,can clearly capture tiny defects and internal structure details,meeting high-precision detection requirements.

Direct observation angle, intuitive presentation of internal conditions, facilitating quick problem location and improving detection efficiency.

1.Security Lock Eye Extraction and Anti-theft Investigation

Scenario: In criminal investigations by the police and security maintenance, inspections and evidence collection of the internal structures of door lock eyes, safe lock holes, and car door locks are conducted.

Value: The 0.78mm ultra-fine insertion tube can directly penetrate into the interior of the lock eyes, clearly observing the lock core pins and slot structures, and investigating illegal unlocking traces and the status of anti-theft devices, providing crucial evidence for case resolution.

2. Precision Instruments and Microscopic Chamber Repair

Scenario: Maintenance of electronic devices, precision instruments, aerospace components, and micro sensors with extremely small internal spaces.

Value: Easily entering the gaps of capillary tubes and precise components to inspect internal solder joints, circuits, tiny cracks or foreign objects, avoiding secondary damage caused by equipment disassembly, and achieving non-destructive testing.

3. Industrial Pipelines and Capillary Hole Detection

Scenario: Inspection of micro pipelines, nozzles, mold cavities, and other slender and narrow spaces in fields such as chemical engineering, medicine, and machinery.

Value: Replaceable probes of different diameters can penetrate into 600-2000mm long micro pipelines to investigate internal blockages, corrosion, and deposits, ensuring the safe operation of industrial equipment.

4. Cultural Relics and Ancient Structures Investigation

Scenario: Non-destructive exploration of lock holes, mortise and tenon structures, and narrow gaps in cultural relic protection and ancient building restoration.

Value: The ultra-fine probe does not damage the cultural relics or the original structure of the building, clearly observing internal decay, insect damage, and cracks, providing precise data for restoration plans.

5. Vehicle Maintenance and Component Inspection

Prep: Choose a suitable probe, attach to the host, power on the 3.5-inch screen, adjust LED cold light brightness.

Inspect: Gently insert the 0.78mm ultra-thin tube into keyholes/tiny gaps, adjust angle for clear view.

Record: One-key to take photos/videos, support on-site playback.

Finish: Retract probe slowly, clean lens, power off and store properly.
