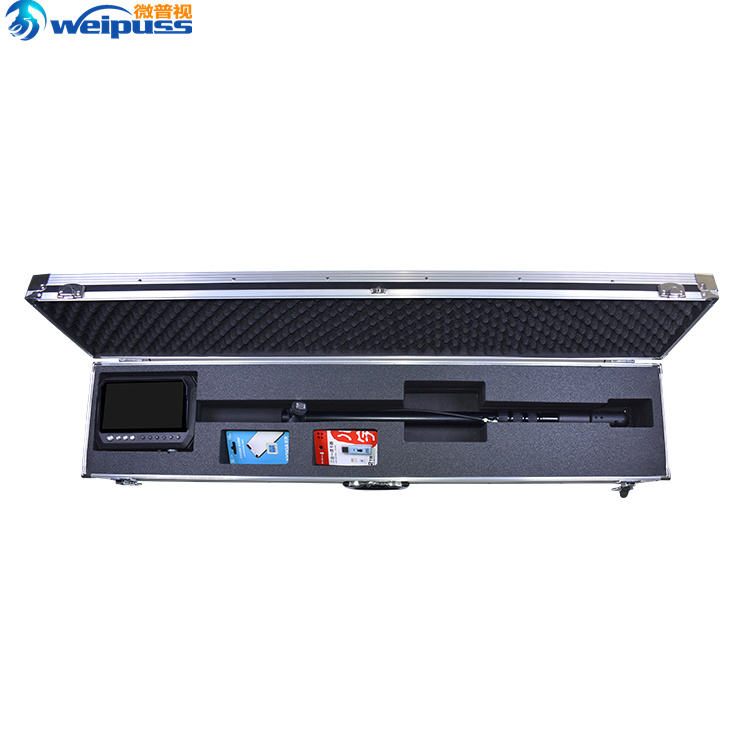

VD50 Audio And Video Life Detector

The VD50 series Video Audio Life Detector, 360-degree rotation, high-definition infrared and white lightoptional, one-way sound pickup, two-way intercom function, the probe can be plugged and unplugged toreplace probes of different specifications, 7-inch display screen, the screen Angle can be rotated 180degrees, applied to search and rescue Security inspection, customs inspection, counter-terrorisminvestigation, etc

VD50 Extendable Video Inspection Mirror / Audio-Video Life Detector Core Advantages & Technical Features

1. 360° Full-Angle Rotation for Detection, No Blind Spots

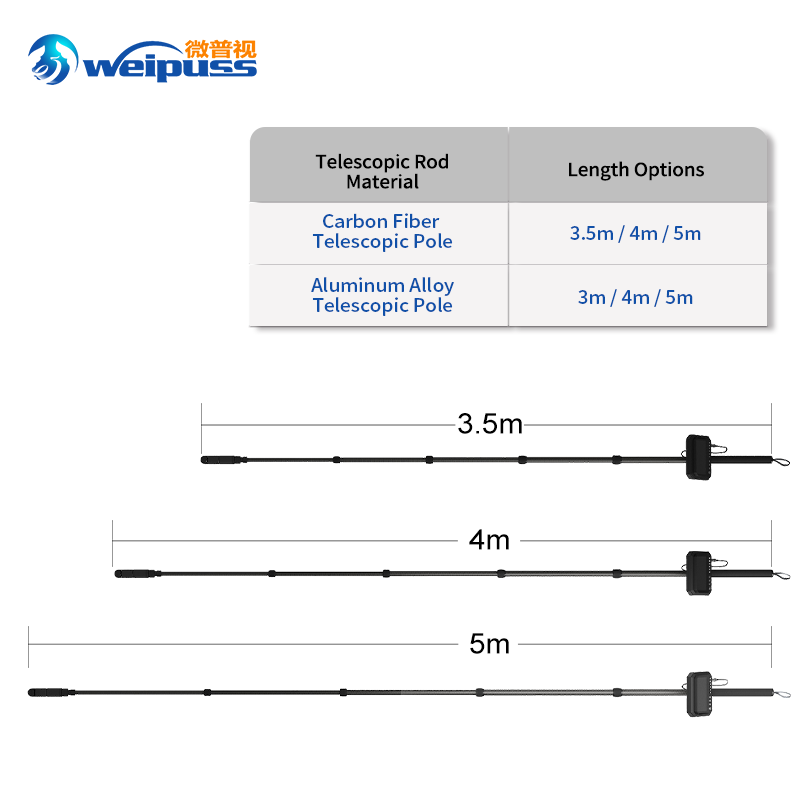

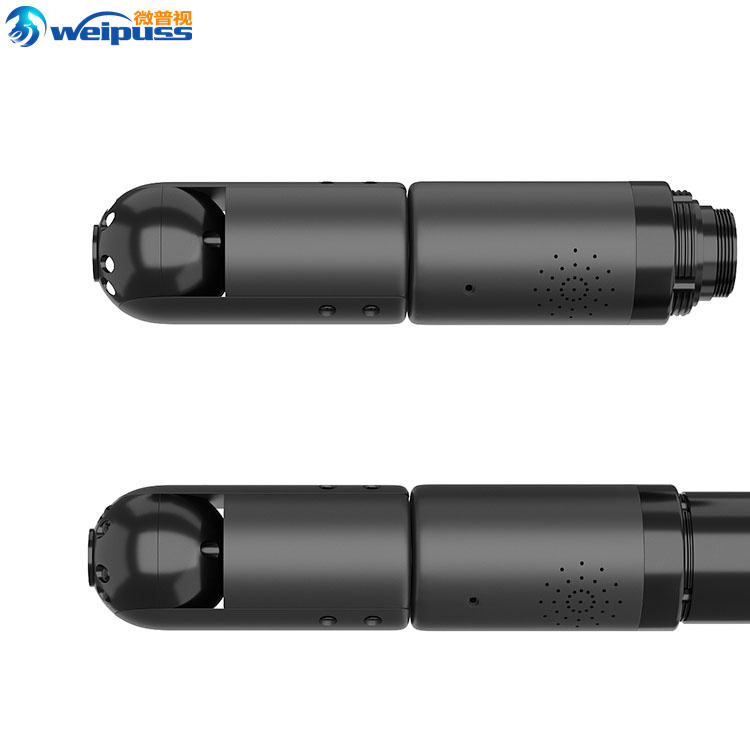

The probe supports 300° vertical and 360° horizontal electric two-way rotation. It is equipped with a customizable 3.5m/4m/5m extendable carbon fiber rod, allowing it to penetrate into crevices and narrow spaces of ruins, conducting comprehensive search for trapped individuals with no visual blind spots.

2. Dual-lens high-definition imaging, capable of operation in all weather conditions

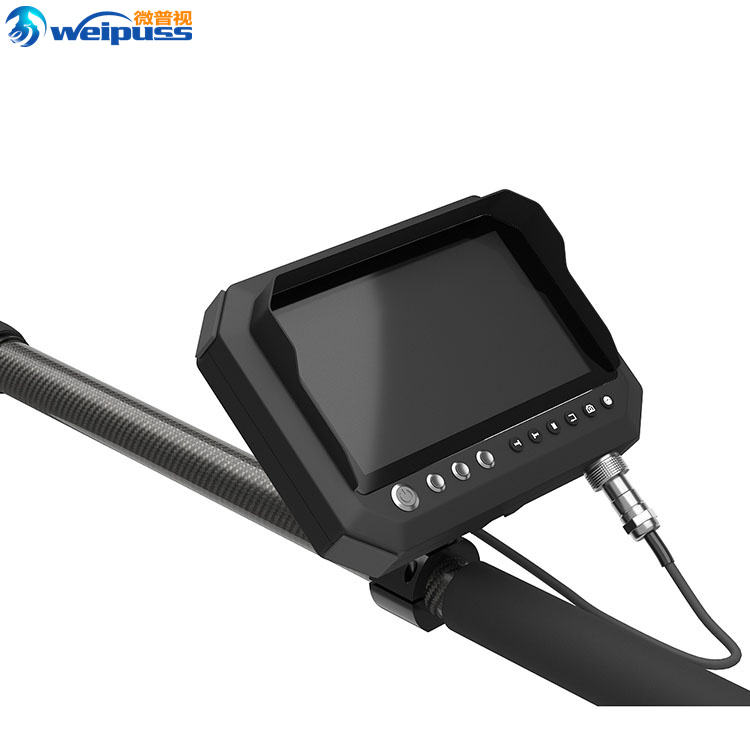

Equipped with high-definition infrared and white light dual light sources, it can capture clear images even in an environment with an ultra-low illumination of 0.01 lux. With a 1920*1080 high-definition resolution and a 7-inch high-definition LCD display, it can precisely identify targets in dark ruins and during night searches.

3. Bidirectional audio and video interaction, efficient search and rescue communication

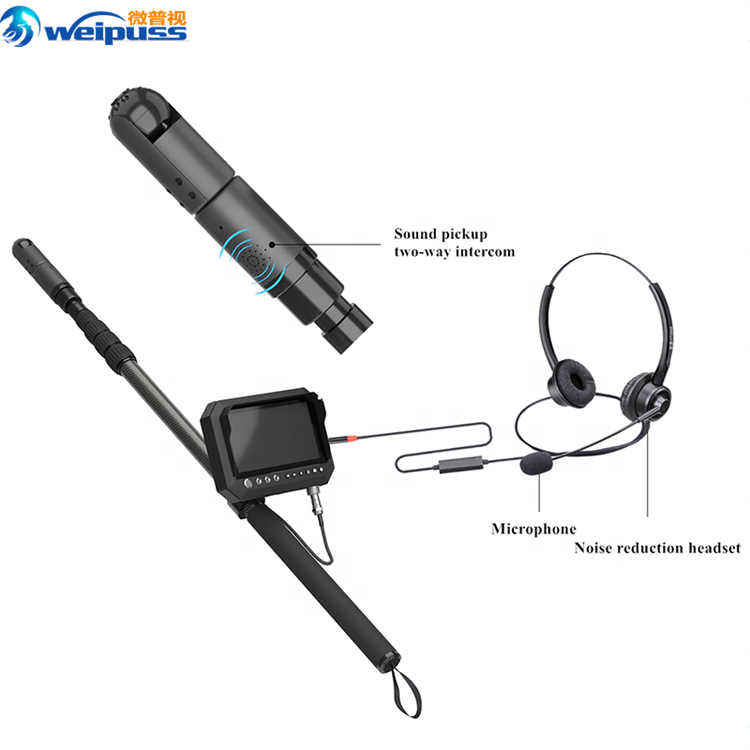

Integrated with one-way audio pickup and two-way intercom functions, it can capture faint sounds within the ruins, and simultaneously communicate with the trapped individuals, soothing their emotions and synchronizing the on-site situation, significantly enhancing the efficiency and success rate of search and rescue operations.

4. Modular and flexible design, adaptable to multiple scenarios

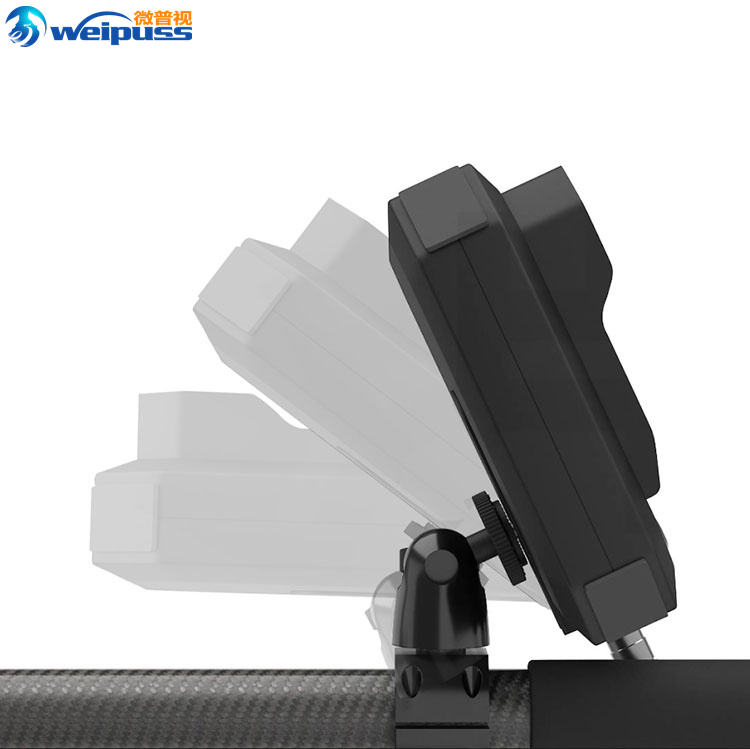

Supports replaceable plug-in probes, equipped with wireless WiFi transmission and a 180° rotatable display, suitable for various scenarios such as ruins search, security inspection and explosion disposal, and anti-terrorism investigation; The telescopic rod can be customized in length to meet the requirements of different working spaces.

5. Professional-level image management, convenient for evidence collection and traceability

Supports 16G TF card storage (with maximum expandable capacity), featuring full functions such as taking photos, recording videos, freezing frames, electronic rulers, white balance, etc.; HDMI output can be used to connect to a large screen, synchronously recording the entire rescue process, meeting the needs of law enforcement and rescue for archival purposes.

6. Sturdy and durable, suitable for extreme conditions

The telescopic rod is made of high-strength aluminum alloy/carbon fiber. It is compatible with humidity ranging from 10% to 85% and temperature ranging from -20℃ to 60℃. It is shock-resistant and durable, capable of operating stably in complex scenarios such as earthquake ruins and harsh outdoor environments, ensuring the smooth execution of rescue tasks.

VD50 Extendable Video Inspection Mirror / Audio-Video Life Detector Application Scenarios

1. Earthquake/Building Collapse Rescue

Utilizing a 3.5m - 5m ultra-long extendable rod, it can penetrate into the cracks of damaged buildings and underground cavities. Through a 360° rotating probe, it conducts a comprehensive exploration. Combined with infrared imaging, it can precisely locate the positions of trapped individuals in dark ruins. One-way audio pickup captures faint cries for help, and two-way walkie-talkies provide real-time comfort and command.

2. Counter-terrorism, Stability Maintenance and Security Search

In scenarios such as counter-terrorism investigations, prison inspections, and customs checks, remote observation is conducted in concealed corners, undercarriages, inside containers, and suspiciously small spaces to clearly identify the presence of personnel and prohibited items, avoiding the risk of close contact and ensuring the safety of personnel.

3. Firefighting rescue / Post-disaster site exploration

For areas such as smoke-filled rooms at the fire scene, collapsed beams and columns, and ventilation ducts, by using both white light and infrared modes, trapped individuals, fire source hazards, or dangerous obstacles can be clearly identified, providing visual evidence for the advancement of rescue efforts and the evacuation of personnel.

4. Criminal Investigation and Scene Examination

This technology is used to conduct remote inspections of crime scene areas such as corners, wall holes, and vehicle engine compartments in criminal cases. It records the details of the scene through high-definition images, assisting investigators in observing and analyzing clues from a distance, while ensuring the safety of the investigators and improving the efficiency of evidence collection.

Would you like me to organize these application scenarios into a concise promotional copy?

Power-on Preparation: Select the appropriate length of the telescopic rod according to the working environment. After powering on, complete the white balance calibration. Switch between the white light / infrared dual light sources as needed. Rotate the screen 180 degrees to a comfortable observation angle and wear the intercom headset.

Precise Detection: Control the probe to achieve 360° horizontal and 300° vertical omnidirectional rotation. Slowly enter the gaps and concealed spaces of the ruins. Observe the scene in real time through the 7-inch high-definition screen. Use one-way audio pickup to capture on-site sounds.

Interaction and Recording: After discovering the target, trigger two-way communication with the trapped person with one click; simultaneously activate the photo / video recording function to preserve high-definition video materials. Support picture freezing, zooming, and precise recording of details.

Expansion and Storage: Can be displayed synchronously on a large screen via WiFi/HDMI connection. After the operation is completed, clean the probe and telescopic rod, avoid bending the pipelines when storing, and properly store the device after turning off the power. Regularly check the equipment status.
