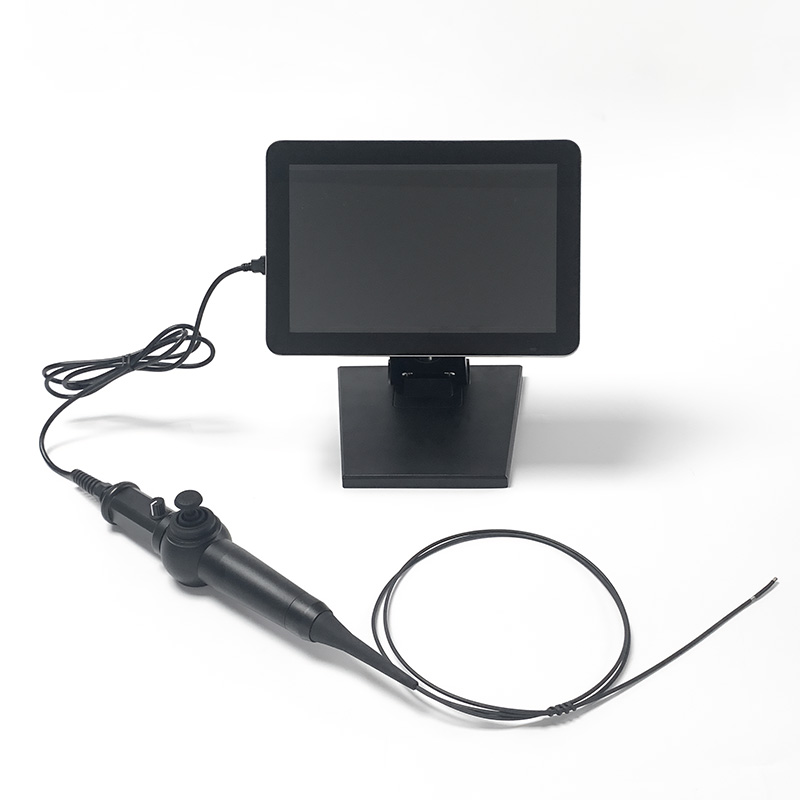

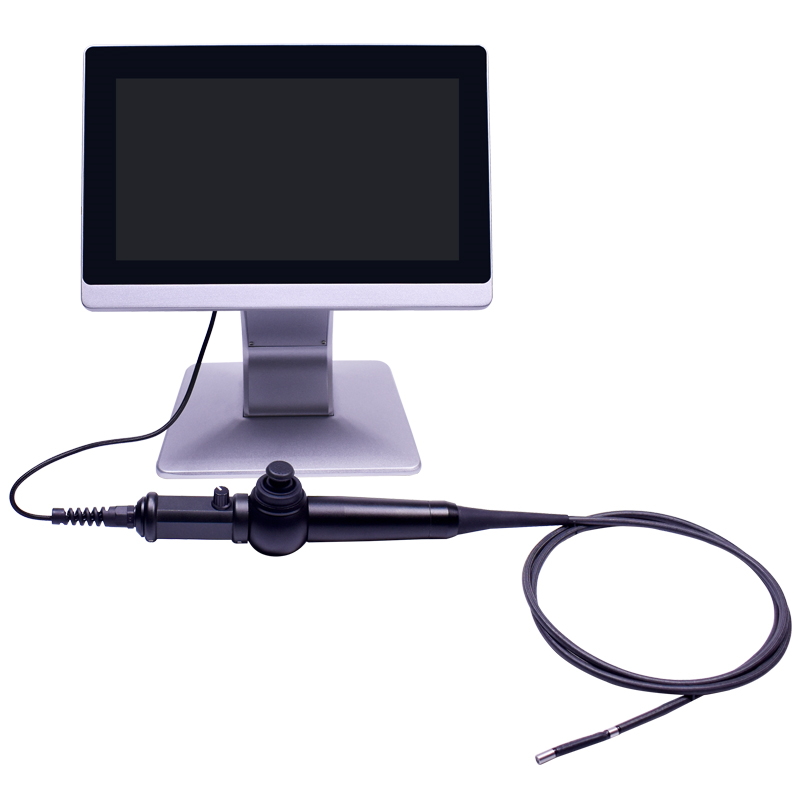

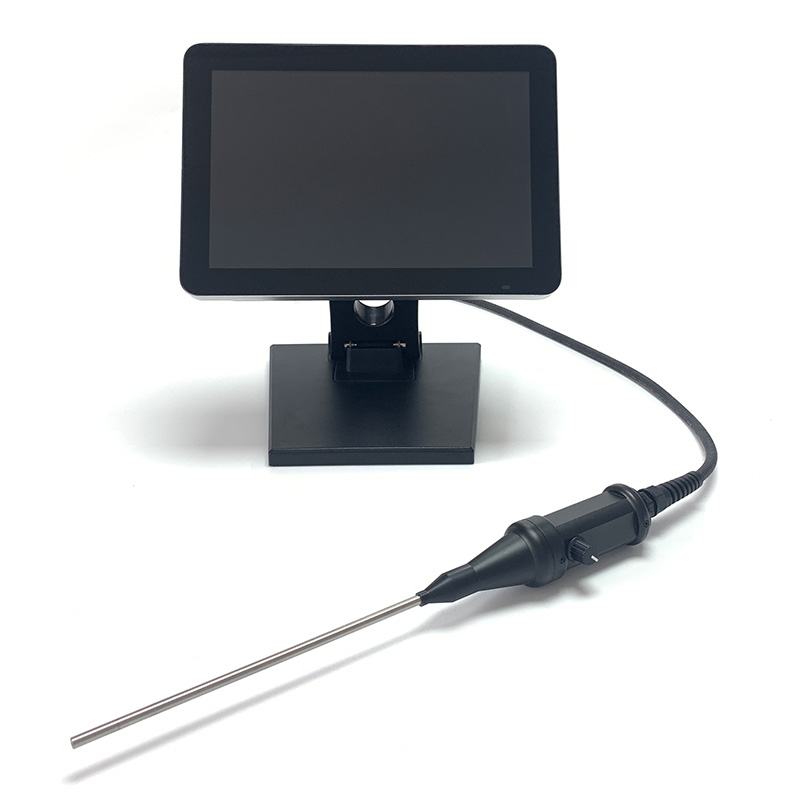

FT Forged Endoscope

The product features a replaceable insertion tube design, supporting quick change-outs of various pipelines such as alloy spring tubes, tungsten wire mesh tubes, and rigid straight tubes. With 0°, 30°, 70°, and 90° multi-view observation, it achieves multi-purpose functionality. The insertion tube boasts IP67 protection, while the main unit has IP55 protection, making it suitable for complex working conditions ranging from -20°C to 60°C. It supports HDMI external large screen display and dual-camera simultaneous display. Additionally, a portable model is available as an option. It is widely used in quality inspection and defect investigation of various automotive and mechanical castings, aiding in rapid problem identification and solution formulation.

FT Series High-Definition Casting Endoscope - Core Advantages & Technical Features

1. 360° All-Directional Guidance, Zero-Defect Precision Inspection

Equipped with a 360° continuous guidance probe, it can flexibly penetrate into the complex internal cavities of the casting, eliminating any detection blind spots; combined with 0°/30°/70°/90° multi-angle observation, it can easily cover all kinds of concealed areas and accurately locate sand holes, cracks, aluminum chips and other defects.

2. Modular replaceable tube design, multi-purpose in one machine to reduce costs

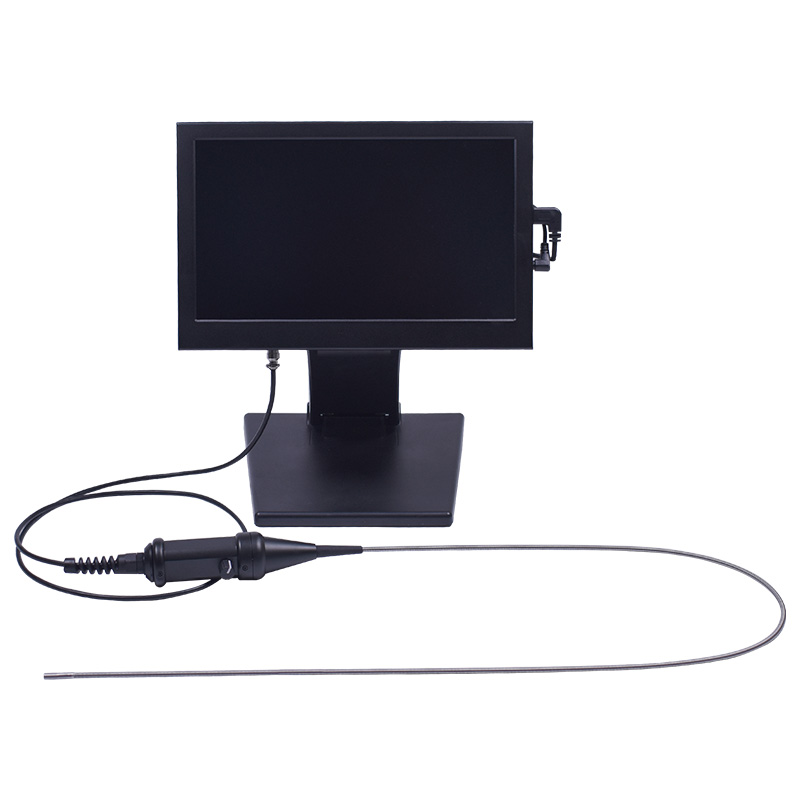

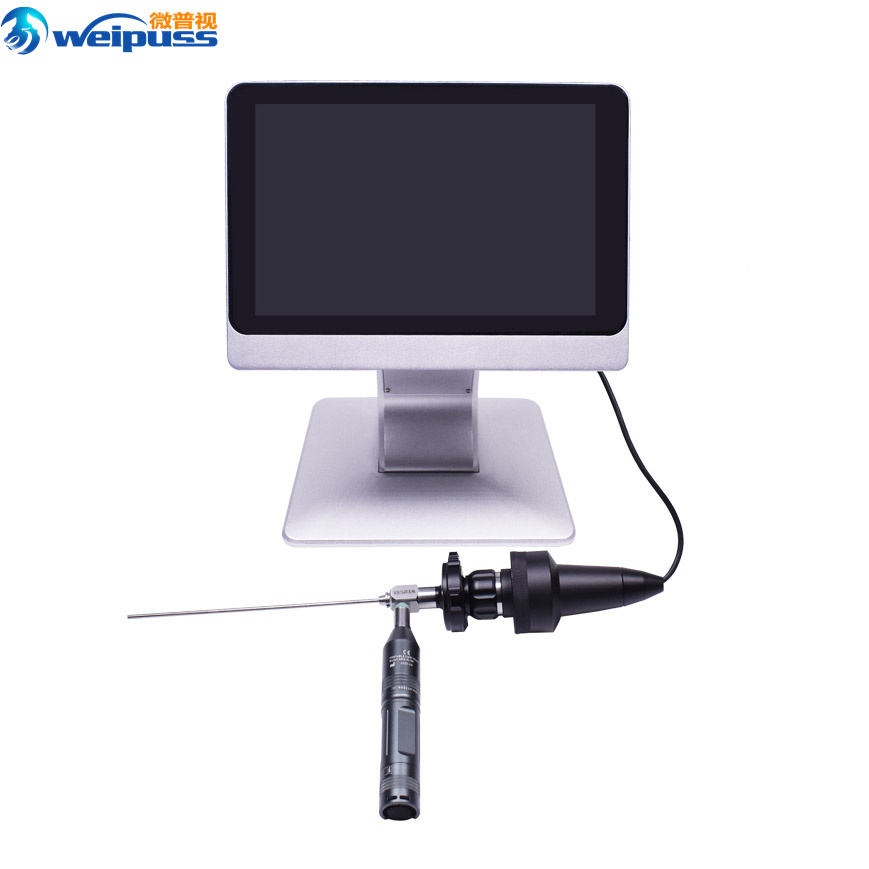

Supports various types of insertion tubes such as alloy spring tubes, wear-resistant tungsten wire mesh tubes, and alloy straight tubes, which can be quickly inserted and replaced. It is compatible with different detection scenarios and workpiece structures. One device can meet the needs of multiple working conditions, significantly reducing procurement and operation costs.

3. Ultra-clear Imaging System, Details Clearly Visible

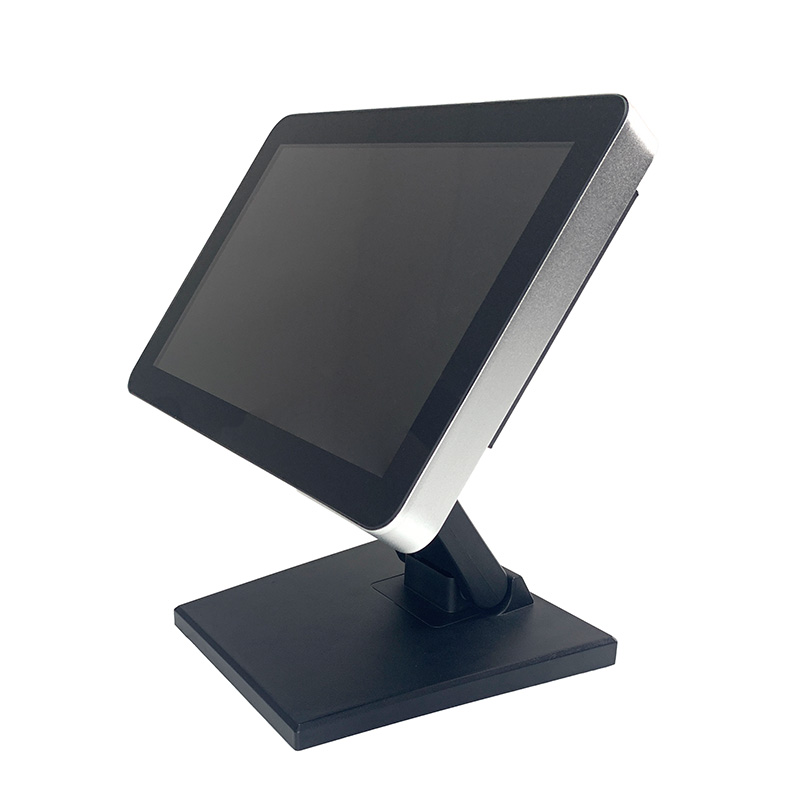

Equipped with 10.1/11.6-inch 1920*1080 full HD displays, supporting multiple aspect ratios such as 16:9/4:3; high-brightness LED/fiber lighting system, combined with a wide depth range, can present clear and transparent images even in dim and deep cavities, allowing for a clear view of even the slightest defects.

4. Professional-level protection, suitable for harsh working conditions

The insertion tube achieves IP67 waterproof and dustproof rating, and the main unit has IP55 protection. It can withstand a wide temperature range of -20℃ to 60℃. It is suitable for harsh sites such as those with oil stains, dust, and humidity in foundries, offering top durability and ensuring stable and reliable operation over the long term.

5. Full-featured image management, efficient detection and evidence collection

Integrated with functions such as photo taking, video recording, picture freezing, zooming, ruler, white balance, etc., it supports 128G large-capacity TF card storage; HDMI output can be connected to a large screen, and both front and side lenses can be synchronized for display, completing detection, recording and archiving in one step.

6. Flexible forms are available, suitable for various scenarios

Two options are provided: desktop mainframe and portable handheld models. They cater to both the fixed-position detection in workshops and the on-site patrol inspections. They can meet the quality inspection, defect detection and process optimization requirements for various castings in industries such as automobiles and machinery.

FT Series High-Definition Casting Endoscope - Core Application Scenarios

1. Quality Inspection of Automotive Castings

Used for inspecting the inner cavities of automotive castings such as engine blocks, cylinder heads, turbochargers, intake manifolds, etc., to precisely detect sand holes, cracks, aluminum chips, scratches, and weld defects, ensuring the quality of the castings upon leaving the factory and avoiding rework and post-sale faults.

2. Non-destructive Testing for Mechanical Castings

This technology is applicable to various mechanical castings such as pump bodies, valve bodies, gearboxes, and hydraulic components. It can thoroughly inspect internal corrosion, rust spots, foreign objects, and shrinkage cavities in complex cavities without the need for disassembly. It enables rapid defect detection and optimization of the casting process.

3. Quality Verification of Casting Weld Joints

For the welding areas of castings, multiple-angle probes are used for direct inspection of weld formation, pores, slag inclusions, and incomplete penetration defects. Coupled with high-definition imaging and image retention, this ensures the traceability requirements for welding quality acceptance and process improvement.

Power-on Preparation: Connect the corresponding specification insertion tube. After powering on, complete the white balance calibration on the 10.1/11.6-inch high-definition screen. Adjust the brightness of the LED/fiber optic light source according to the inspected workpiece to adapt to the dim environment of the foundry workshop.

Precise Inspection: Control the probe to rotate 360° in all directions through the joystick. Combine with the multi-angle switching of 0°/30°/70°/90°, deeply explore the complex internal cavities of the casting, and conduct thorough inspections without any blind spots for sand holes, cracks, aluminum chips, etc.

Record and Archive: When a defect is detected, trigger the photo/video shooting, freeze the image, and use the zoom function. The ruler can be adjusted for precise measurement of the defect size, and it will be automatically saved to the TF card for convenient future traceability and report generation.

Flexible Expansion: Support HDMI external display for large-screen display. It can achieve synchronous observation of the front and side lenses. When changing the working conditions, simply plug and unplug to replace different material insertion tubes and quickly adapt to different casting detection requirements.

Storage and Maintenance: After use, wipe the insertion tube and probe with a dust-free cloth to avoid bending the pipelines. After powering off, store it according to the specifications. Regularly clean the lenses and check for pipeline wear to ensure the long-term stable operation of the equipment.
