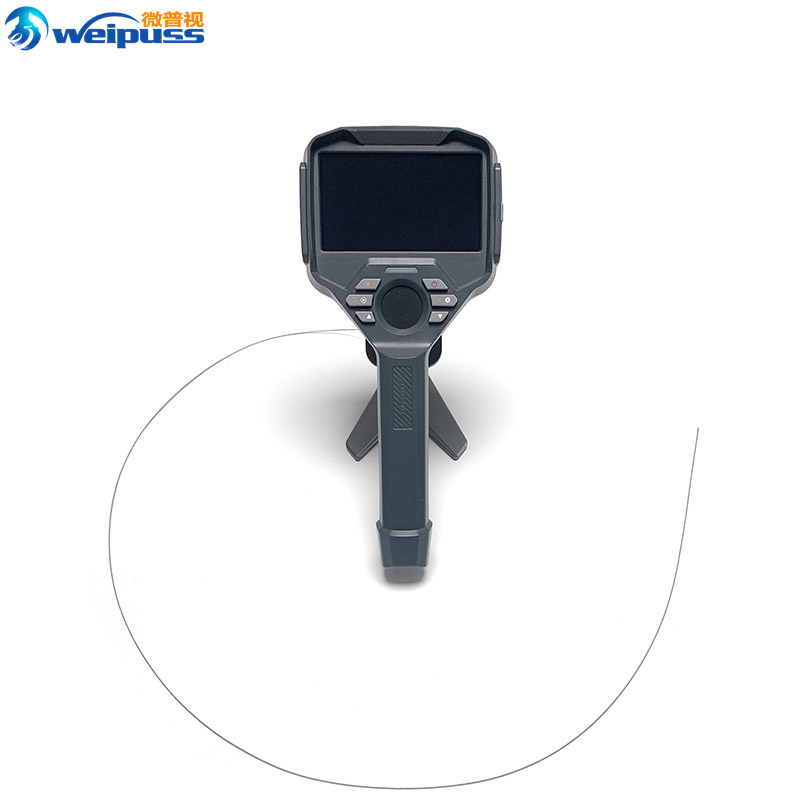

The GT series high-definition touch screen endoscope is a non-destructive inspection instrument that can meet the requirements of multi-purpose detection. The probe is controlled by a joystick and can be bent and rotated in all directions by 360 degrees. It can take photos and record videos of the on-site conditions at any time. The probe is equipped with a high-definition image sensor, providing clear and bright images. The 5-inch high-definition LCD touch display terminal has clear and bright colors. The insertion tube adopts a plug-and-pull design and can be replaced at any time, making it multi-functional. The pipeline material is made of four layers of tungsten wire braided mesh, significantly improving its wear resistance and durability.
1. All-Around Flexible Control, No Blind Spots in Inspection

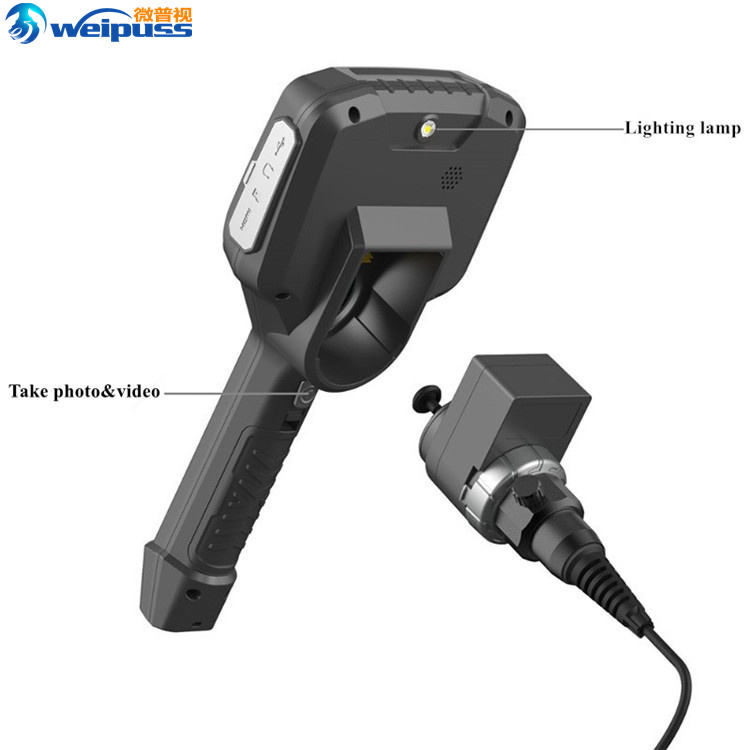

Equipped with a joystick for precise control of the probe, it supports 360° full-range bending and rotation, avoiding inspection blind spots; on-site one-click photo and video capture is available at any time to quickly retain inspection image data.
2. Ultra-clear imaging display, details clearly visible

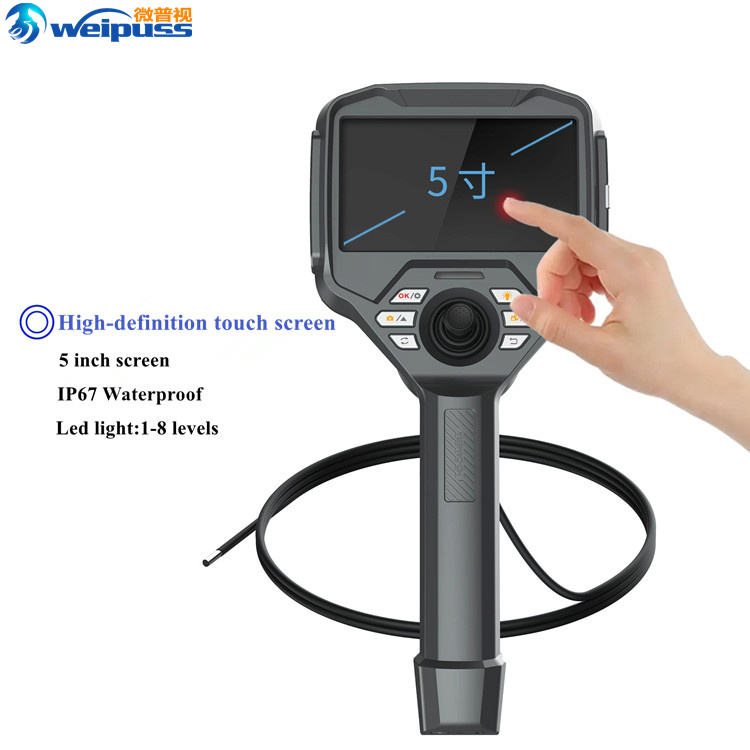

Equipped with a high-performance high-definition image sensor, the picture is bright and clear; paired with a 5-inch high-definition LCD touch screen, color reproduction is true-to-life, making even minor faults and hidden dangers immediately apparent.
3. Plug-and-pull modular design, one machine for multiple uses to save money
The insertion tubes support quick plug-and-pull replacement without the need to replace the entire machine. One device can be adapted to various pipe diameters and multiple working conditions for detection, significantly enhancing the equipment utilization rate and reducing procurement costs.
4. High-strength Pipeline, Durable and Wear-resistant
The detection pipeline adopts a four-layer tungsten wire braided structure, significantly enhancing its tensile strength, wear resistance, and anti-bending performance. It is suitable for complex and harsh industrial environments and has a longer service life.

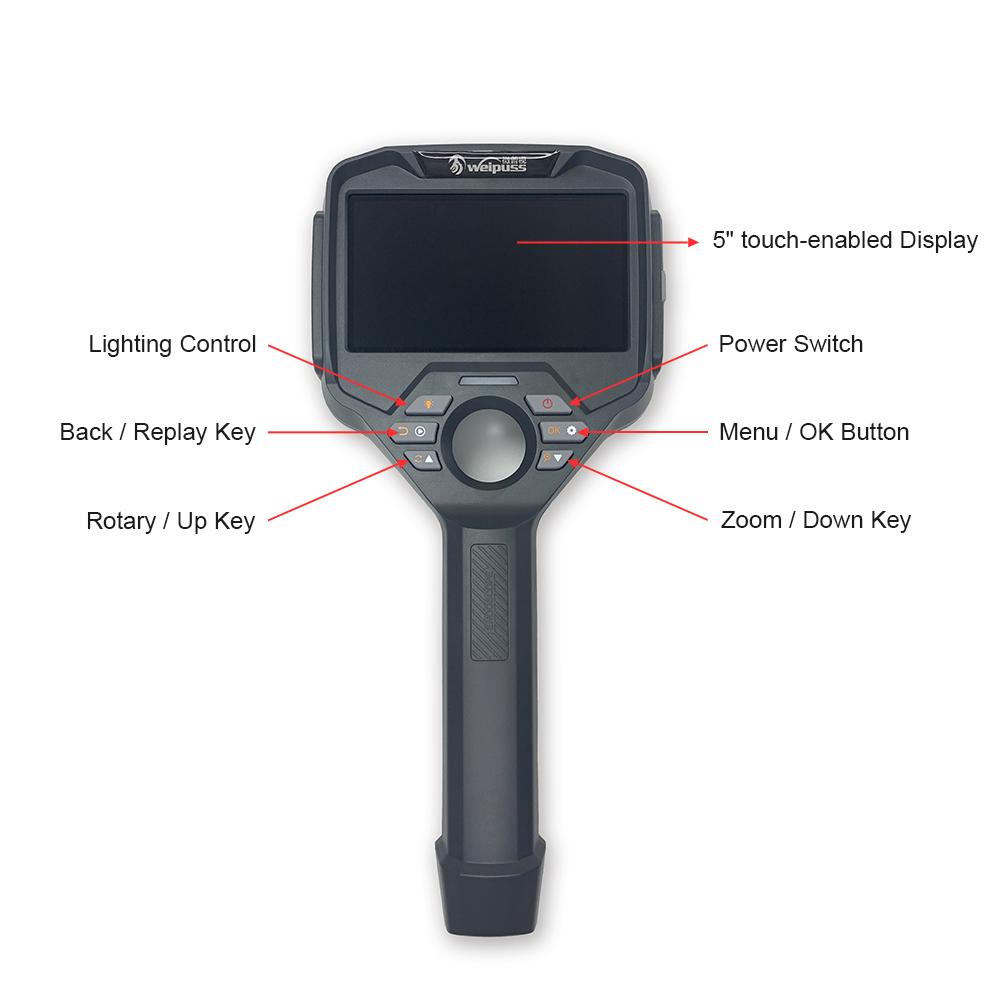

5. Intuitive Touch Control for Easy Operation and Efficient Work
The high-definition touchscreen terminal offers an intuitive interaction experience. No complex learning is required for operation, allowing personnel to quickly get started with their tasks and enhancing the efficiency of daily inspections, maintenance, and flaw detection work.
Product name | 5 inch Handheld Industrial Endoscope Camera |
Probe diameter | 0.95/1.2/1.8/2.2/2.4/2.8/4/6/8/10mm |
Probe length | 1m-7m (Customizable) |
Probe material | Four-layer tungsten wire woven mesh |
DOF | 5-100mm&5mm-∞ |
FOV | 90°/120° |
Light source | high-brightness LED |
Sensor | CMOS |
Pixels | 1.0MP |
Screen size | 5inch |
Lighting adjustment | Support |
Customized support | Customized logo, OEM, ODM |
Resolution | 1920*1080&720*1280 |

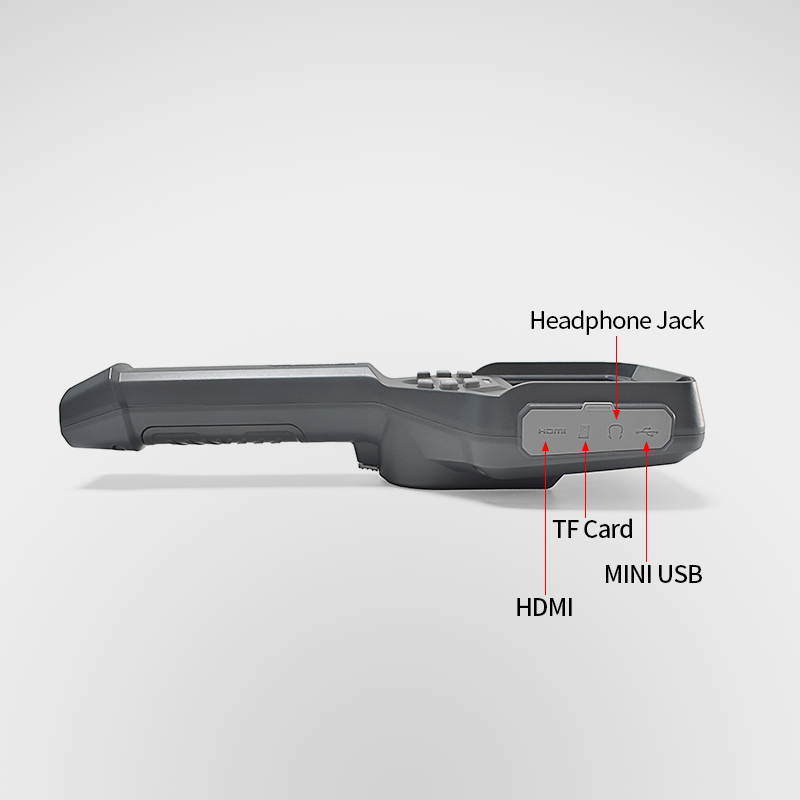

Storage | TF card(32G), It can be expanded to 128G |
Battery | 3250mAh, Two batteries (4 hours) |
Operating temperature | -20°C~60°C |
Waterproof Grade | IP67 |
Functions | Take photo, Video recording.Image rotation, Light adjustment, Looking back, the ruler,Zooming in and out. |
1. Mechanical Manufacturing and Equipment Maintenance
It can be used to inspect the inner cavities of engines, gearboxes, and precision machinery, detecting internal wear, cracks, carbon deposits, and assembly defects. With high-definition imaging, it can record potential hazards in real time without the need for disassembly, significantly reducing maintenance downtime.
2. Special Vehicle Maintenance Inspection
This is used for inspecting hidden parts such as cylinders, oil circuits, three-way catalyzers, and chassis gaps. It enables a clear visual examination of oil leakage, cylinder wall damage, and pipeline aging conditions. Photos can be taken for evidence, and precise fault diagnosis can be made, thereby improving the accuracy of repairs.
3. Special Equipment Inspection for Aerospace Industry
Conduct non-destructive testing on aircraft engines, pipeline components, and precision chambers. Perform a 360-degree inspection without any blind spots to observe internal rust, cracks, and foreign objects, meeting the requirements for high-precision inspection and ensuring the safety of equipment operation.
4. Power Boiler and Industrial Container Inspection
Enter the furnace of the boiler, the interior of the pressure vessel, and the interior of the transformer to inspect issues such as internal wall corrosion, weld defects, and accumulated ash and coke. The wear-resistant pipelines are adapted to complex working conditions, enabling safe and visual inspection of enclosed spaces.
The device turns on and the 5-inch touchscreen lights up. By gently pushing the joystick, you can control the probe to rotate 360 degrees for exploration. Take a clear photo or start recording with one click to preserve the image. If you need to switch working conditions, simply plug and unplug to replace the insertion tube. After use, clean the probe pipeline and the entire device for storage.
