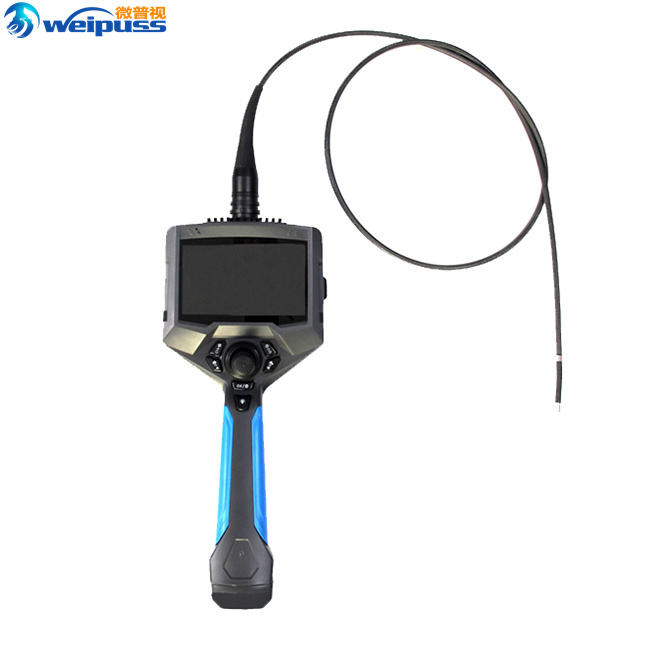

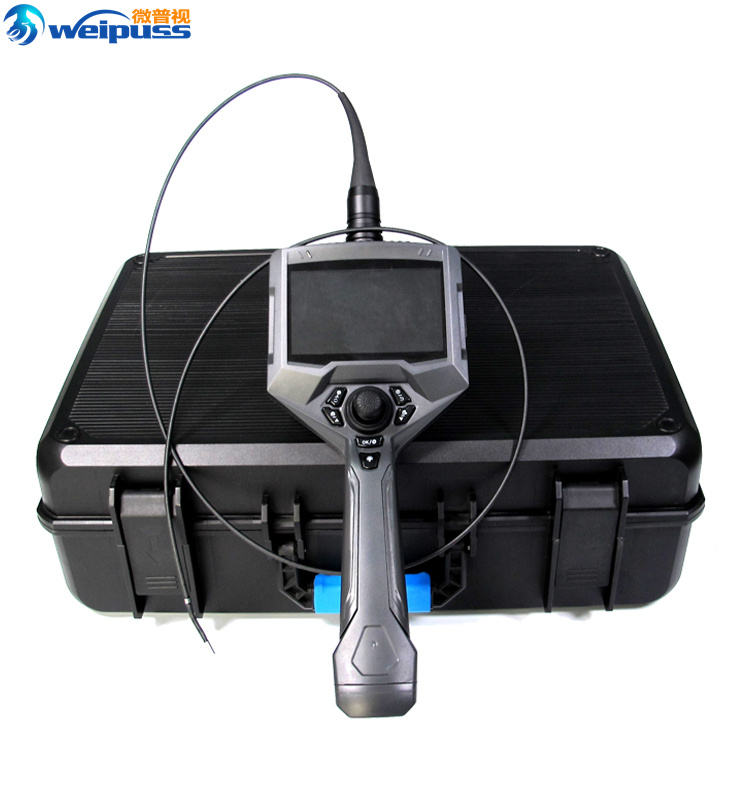

GM High-definition Video Endoscope

GM series hose flexible video Industrial endoscope is controlled by a probe joystick and can rotatefreely in four directions at 360 degrees. The front-end probe is designed to be IP67 waterproof, acid.resistant and oil-resistant. The insertion tube is designed to be pluggable and can be replaced at anytime.
It is equipped with an adjustable high-brightness LED light source, providing clear and bright shootingeffects, and can be used in any complex environment. The integrated 5-inch high-definition displayscreen enables users to take photos and record videos in high definition at any time, achieving anintegrated monitoring and recording function.

GM Series Flexible Video Industrial Endoscope with Soft Tubing - Core Advantages & Technical Features

1. Universal Dexterity Control Technology

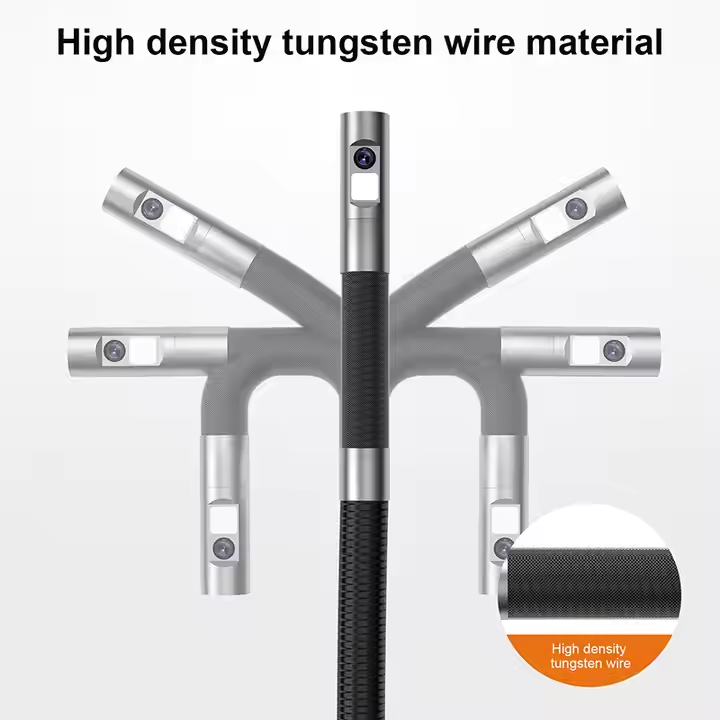

Equipped with a professional joystick for precise head control, it enables the probe to rotate freely in all directions by 360 degrees, eliminating observation blind spots in narrow cavities and facilitating flexible exploration of complex internal spaces.

2. IP67 High-Strength Protection Technology

The front probe adopts IP67-level waterproof design, and also possesses acid resistance, oil resistance and corrosion resistance properties. It can operate stably for a long time in harsh industrial conditions such as oil contamination, humidity and acid-base environments.

3. Modular Plug-and-Play Design

The insertion tube adopts a quick-insertion and quick-extraction structure, allowing for the switching of pipeline specifications without the need for a complete machine replacement. This enables multi-purpose use of the equipment, significantly reducing equipment procurement and operation costs.

4. Intelligent Adjustable Brightness and Flashlight Function

Equipped with an adjustable high-brightness LED lighting source, it can automatically control the light and achieve a clear and transparent image even in dim, enclosed, or deep-chamber environments, eliminating the problem of blackened and illegible images.

5. High-definition Integrated Video Recording

Standard equipped with a 5-inch high-definition visual display screen, capable of real-time preview. It supports one-click high-definition photo and video recording for archiving, integrating real-time monitoring, image capture, and data retention functions.

GM Series Flexible Industrial Endoscopes - Detailed Application Scenarios

1. Industrial Equipment Maintenance

Delve into the interiors of engines, gearboxes, pump valve chambers, etc., inspecting inner wall cracks, part wear, accumulated dirt and foreign objects, and assembly defects. Without the need for disassembly, this system uses flexible probes to quickly identify potential issues, thereby enhancing maintenance efficiency.

2. Automobile Repair Professional Inspection

This is widely used for inspecting engine cylinders, oil lines, three-way catalyzers, intake and exhaust systems, to check for internal carbon deposits, cylinder wall scratches, pipe aging and blockages. Combined with high-definition images for recording, it can accurately diagnose faults and assist in determining repair costs.

3. Chemical Energy Tank Inspection

Due to its acid-resistant, oil-resistant and waterproof properties, it is used for detecting the inner walls of chemical storage tanks, oil pipelines, heating pipelines, and boiler inner shells. It can identify internal corrosion, weld porosity, and internal defects. It is suitable for harsh conditions such as oil contamination, acid, and alkali.

4. Precision Manufacturing and Quality Inspection for Non-destructive Testing

For precision components, die-casting cavities, and internal parts of welded workpieces, inspect for weld defects, shrinkage cavities, burrs, and processing residues. Conduct 360-degree observation without any blind spots, take high-definition photos and videos, meeting the requirements for factory quality inspection and incoming material re-inspection for archiving.

To make the operation more convenient and enhance the experience, I have organized the instructions following the process of "power on - exploration - recording - changing tubes - storage", with simple and clear language that even beginners can quickly master:

GM Series Industrial Endoscopes - Simple Operation Guide (Enhanced Experience Version)

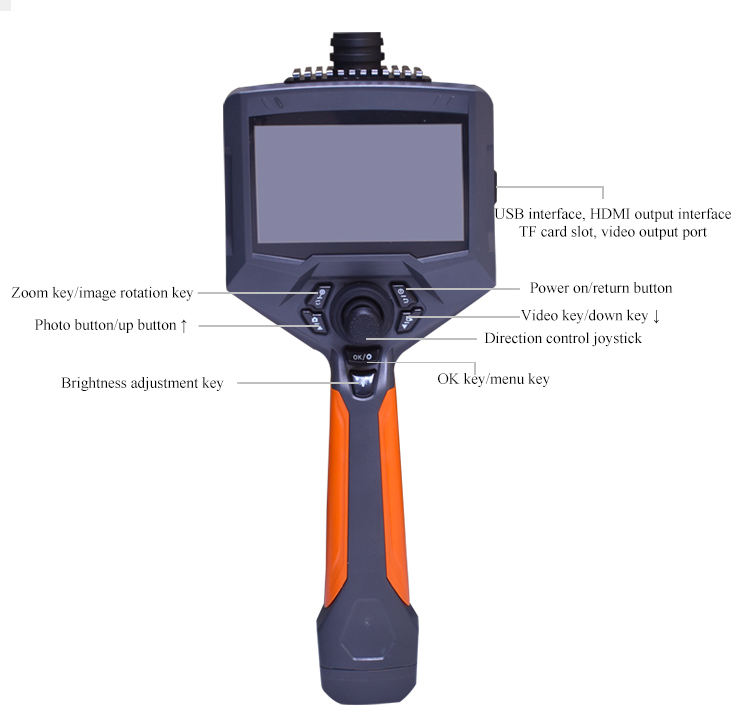

1. After powering on, the 5-inch high-definition screen will light up. Use the joystick to precisely control the probe's 360° rotation and movement, allowing for flexible and thorough inspection of the target area.

2. Adjust the brightness of the LED lights as needed to ensure clear images. In case of abnormalities, simply click the screen to take a photo or record a video to preserve the data.

3. When changing the working conditions, simply plug and unplug the insertion tube to complete the replacement without any complex procedures.

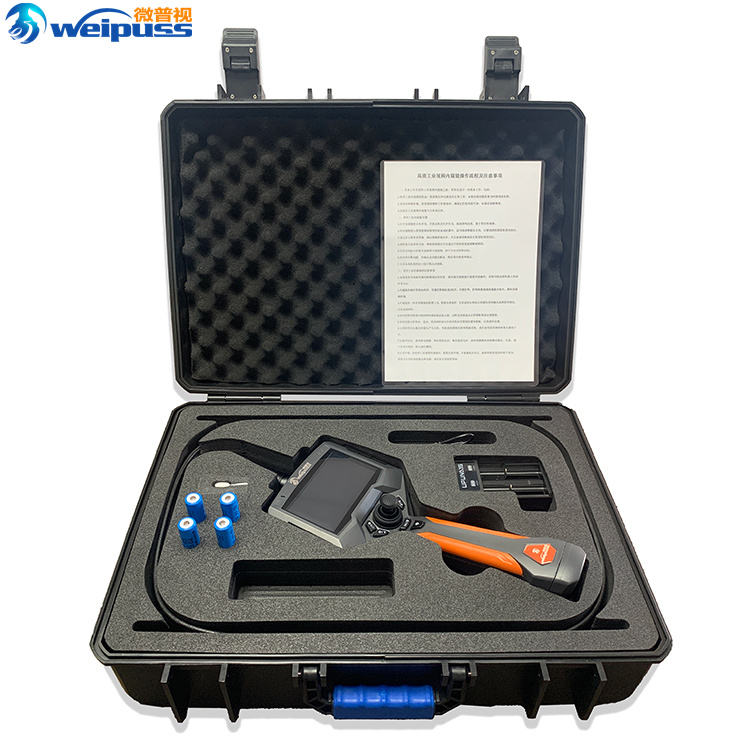

4. After use, wipe the probe and pipeline with a dry cloth. When storing, avoid bending the pipeline and turn off the device properly before storing.
