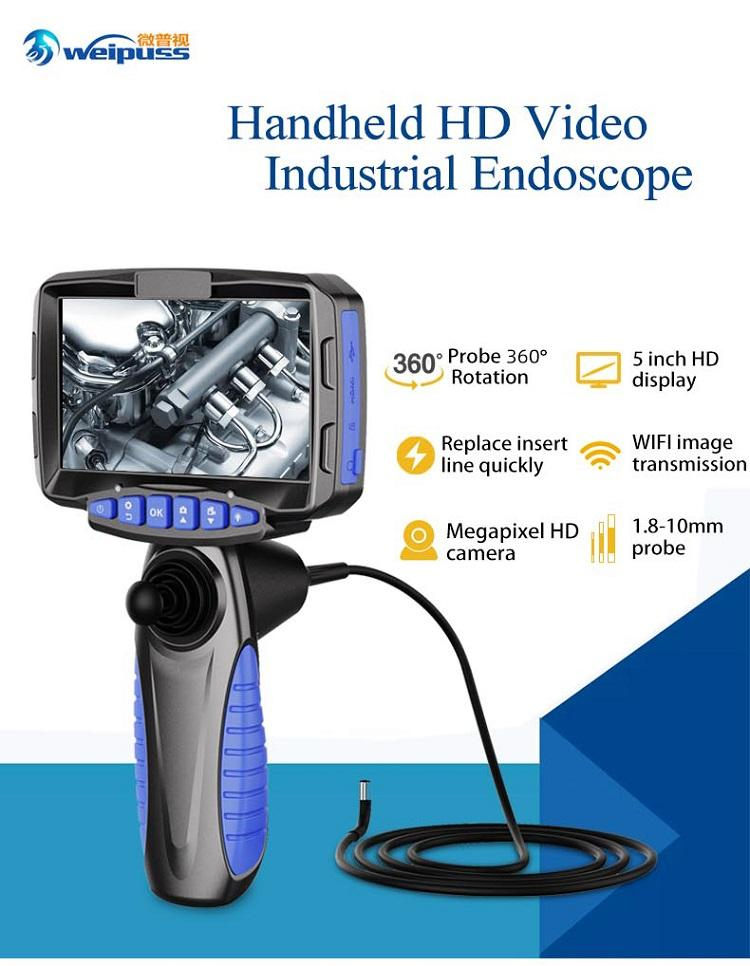

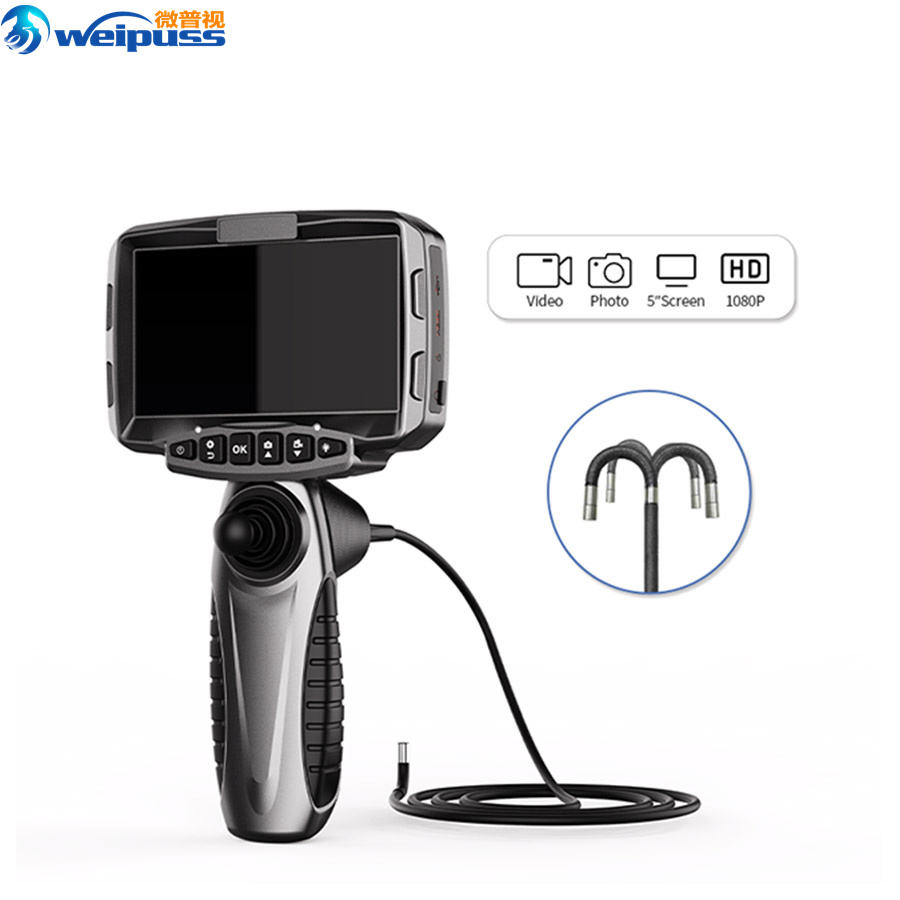

The SEM series portable video endoscope features a joystick control for the probe, allowing for 360-degree rotation in any direction. The front probe is designed to be waterproof, acid-resistant, and oil-resistant.
The insertion tube is designed for plug-and-play functionality, enabling easy replacement at any time.
It includes an adjustable high-brightness LED light source, providing clear and bright shooting effects, suitable for use in any complex environment. The integrated 5-inch high-definition display allows for real-time photography and video recording for comprehensive monitoring and recording. The entire unit is compact, flexible, and easy to carry.

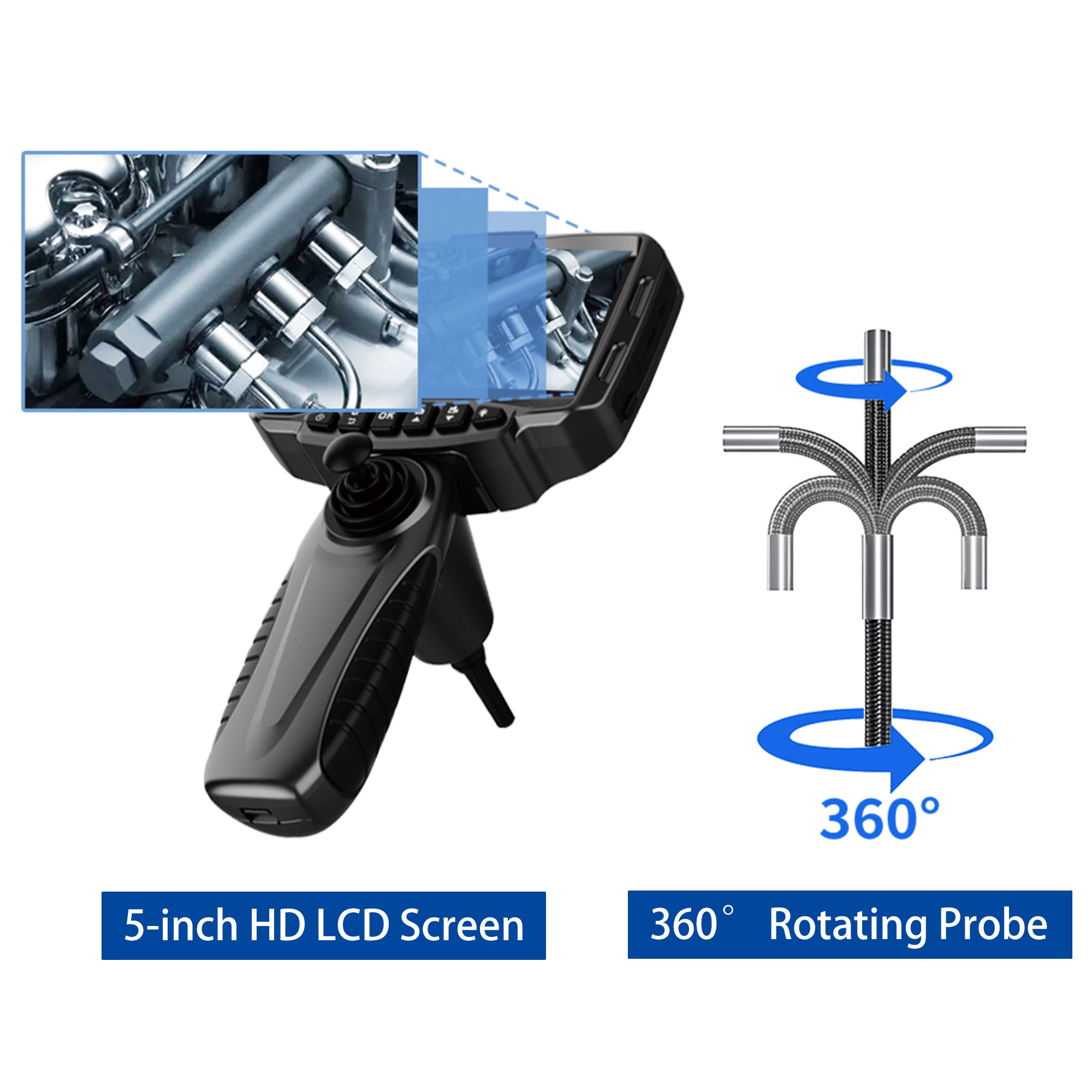

Equipped with a professional joystick for controlling the probe, it supports 360° four-way free rotation. It can reach into narrow cavities and hidden crevices without any detection blind spots, and can observe internal details from multiple angles.
Three-proof durable professional configuration
The front probe adopts a three-proof process of waterproof, acid-proof, and oil-proof, which can be adapted to harsh working conditions such as oil stains, dampness, and acid-base corrosion. It is highly durable and provides more stable on-site operations.

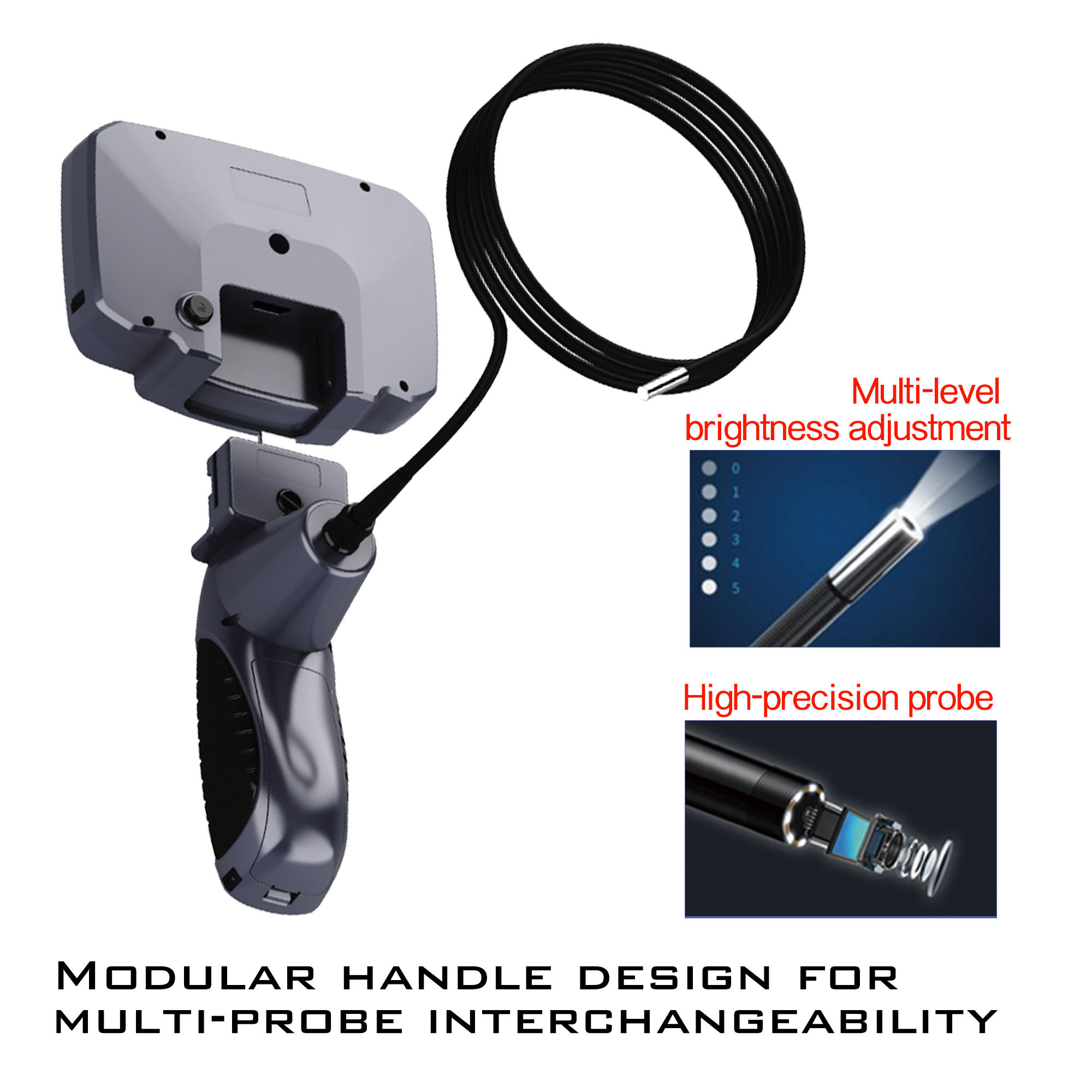

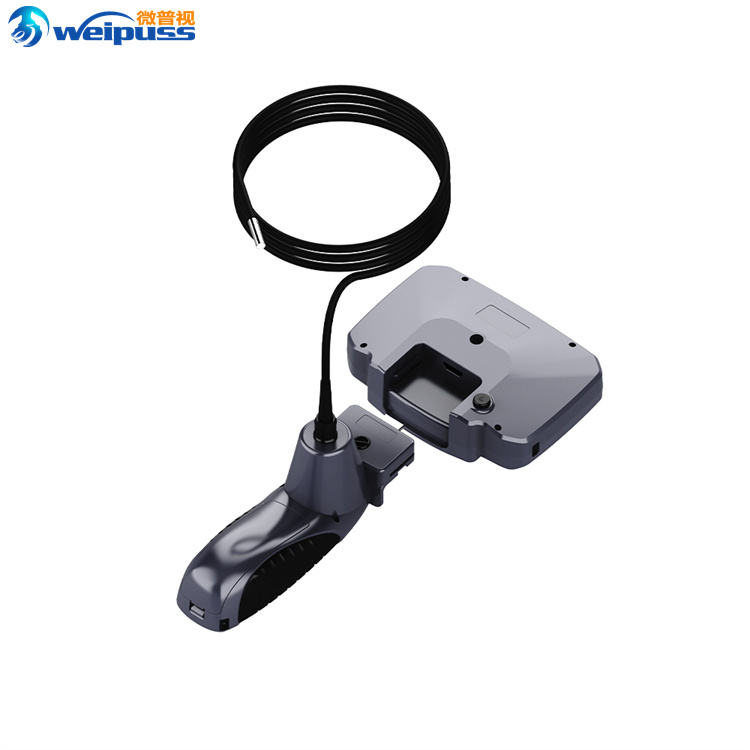

Plug-in modular flexible design
The insertion tube supports quick insertion and removal for replacement, allowing it to adapt to different detection conditions without the need for a complete machine replacement, achieving multi-purpose use with one machine and reducing procurement and operation costs.
Intelligent adjustable high-brightness lighting system
It is equipped with an adjustable high-brightness LED light source. Even in dim and enclosed, complex backlit environments, it can brighten the image quality, making the imaging clear and transparent, with all details visible at a glance.
High-definition integrated image recording
It integrates a 5-inch high-definition display, allowing real-time preview of the picture. With one click, it can complete high-definition photography, video recording, and archiving, achieving integrated monitoring, observation, and recording operations.
Compact and portable global compatibility
The entire machine has a small and lightweight design, easy to operate handheld, convenient for outdoor carrying for inspection, and can be easily used for on-site investigation, outdoor operations, and on-site maintenance.
Product name | 5 inch Handheld Industrial Endoscope Camera |
Probe diameter | 0.95/1.0/1.2/1.8/2.0/2.2/2.4/2.8/3.9/4.5/6.0/8.0mm(0ptional) |
Probe length | 1m-5m (Customizable) |
Probe material | Four-layer tungsten wire woven mesh |
DOF | >5mm |
FOV | 120° |
Light source | high-brightness LED |
Sensor | CMOS |
Pixels | 1.0MP |
Screen size | 5inch |
Lighting adjustment | Support |
Customized support | Customized logo, OEM, ODM |
Resolution | 1920*1080/1280*720 |
Storage | TF card(16G), It can be expanded to 64G |
Battery | 5000mAh (4 hours) |
Waterproof Grade | IP67 probe |
Functions | Take photo, Video recording,Image rotation, Light adjustment, Looking back, the ruler,Zooming in and out. |
1. Industrial Equipment Maintenance: Enter the inner cavities of equipment such as engines, gearboxes, pumps, and valves to inspect wear, cracks, deposits, and foreign objects. Without disassembling the equipment, quickly identify potential hazards and adapt to oily and humid working conditions.
2. Automobile Maintenance Inspection: Explore carbon deposits, damage, and aging of internal components of cylinders, oil circuits, and three-way catalytic converters. With high-definition imaging and video recording, accurately locate faults and assist in repair and damage assessment.
3. Pipeline and Municipal Inspection: Suitable for water supply, heating and ventilation, and power conduit pipes, etc. Identify blockages, leaks, and corrosion issues. The waterproof probe can operate in humid environments, and the portable design is suitable for outdoor inspections.
4. Precision Manufacturing and Quality Inspection: Used for inspecting internal parts of precision components and welded workpieces, checking weld defects, processing residues, and assembly flaws. With 360° rotation for thorough inspection without blind spots, it meets the requirements for quality inspection and archiving.
To make the operation smoother and enhance the user experience, I have organized the simple instructions following the logic of "power on - exploration - recording - changing tubes - storage", with clear steps and intuitive operation:
SEM Series Portable Video Endoscope - User Friendly Operating Guide
1. After turning on the device, a 5-inch high-definition screen will light up. Use the joystick to easily rotate the probe 360° in all directions, enabling flexible and precise inspection of the target area.
2. Adjust the brightness of the LED lights as needed to ensure clear images. In case of abnormalities, simply click on the screen to complete high-definition photography or video recording.
3. If the working conditions change, simply unplug and plug in the insertion tube for quick replacement, without any complicated procedures.
4. After use, wipe the probe and pipeline with a dry cloth to avoid bending. After turning off the device, store it conveniently for easy future use.
